1640170000

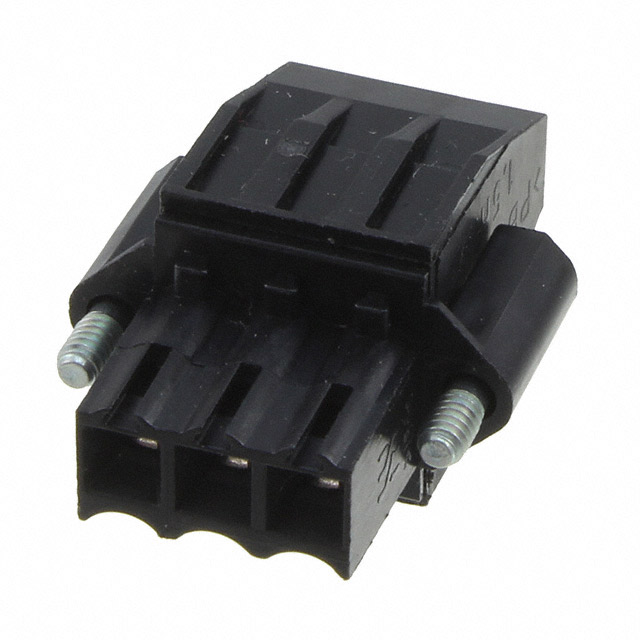

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1640170000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1640170000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1640170000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 3POS 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.621 | $1.236 | $1.157 | $1.029 | $1.007 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.928 | $0.839 | $0.744 | $0.699 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1640170000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49031 pcs | Data sheet | 1640170000 |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 0.2-1.5mm² | Wire Gauge or Range - AWG | 14-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Plug, Female Sockets | Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | Omnimate BL |
| Screw Size | M2 | Positions Per Level | 3 |
| Plug Wire Entry | 270° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 164017 281-1046 BL 3.5/270/3 F BK |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.888" (22.56mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
