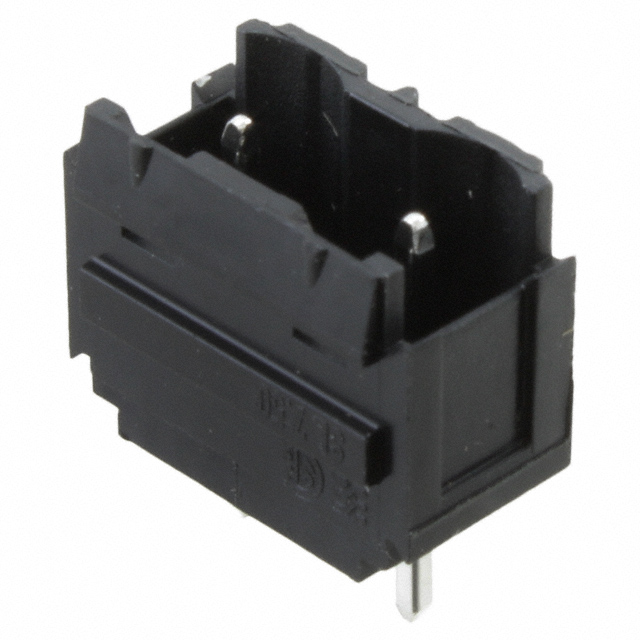

1629570000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1629570000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1629570000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1629570000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 2POS VERT 7.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.433 | $0.303 | $0.283 | $0.257 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.256 | $0.216 | $0.205 | $0.185 | ||
- Product parameter
Product parameter
| Part Number | 1629570000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS VERT 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 119068 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 500V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.295" (7.50mm) |
| Packaging | Bulk | Other Names | 162957 281-1334 SL 7.50/180/2 B BK |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.472" (12.00mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | Vertical |
| Features | - | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) Vertical Through Hole |
| Current - UL | 15A | Current - IEC | 15A |
| Contact Tail Length | 0.177" (4.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
