1616100000

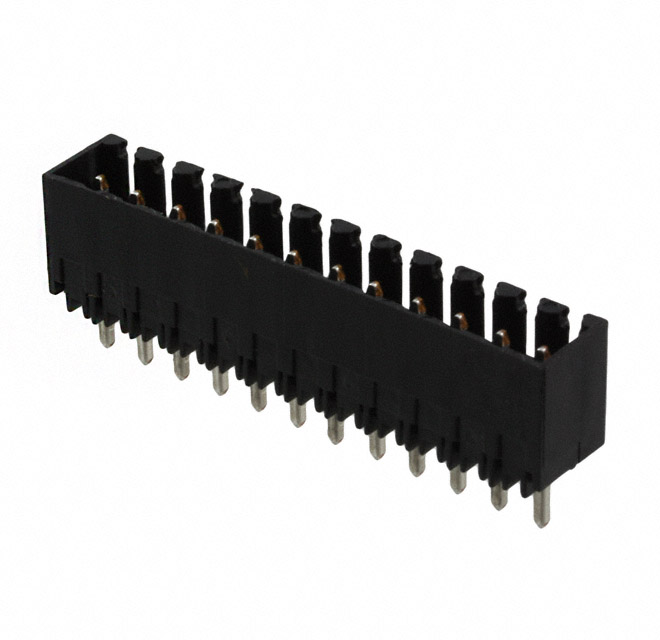

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1616100000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1616100000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1616100000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 12POS VERT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.275 | $1.735 | $1.625 | $1.444 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.413 | $1.303 | $1.177 | $1.044 | ||
- Product parameter
Product parameter
| Part Number | 1616100000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36233 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 125V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 161610 281-1150 SL 3.5/180/12 G BK |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.437" (11.10mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | 12A | Contact Tail Length | 0.177" (4.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
