1596170000

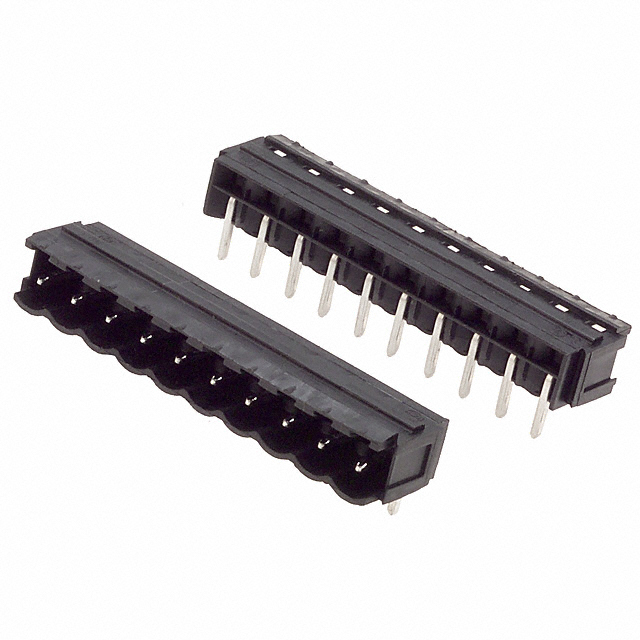

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1596170000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1596170000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1596170000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 10POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.329 | $1.012 | $0.948 | $0.842 | $0.824 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.76 | $0.687 | $0.609 | $0.572 | ||
- Product parameter
Product parameter
| Part Number | 1596170000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 10POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53495 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 159617 281-1221 SL 5.00/90/10 B BK |
| Operating Temperature | -20°C ~ 120°C | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.335" (8.51mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | 12A | Contact Tail Length | 0.177" (4.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
