1386360000

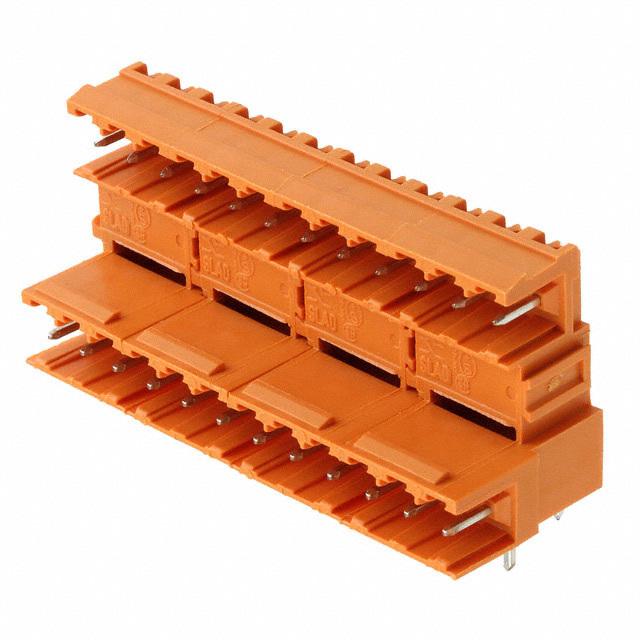

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1386360000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1386360000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1386360000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 24POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.004 | $3.523 | $3.323 | $3.163 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.103 | $2.702 | $2.602 | $2.502 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1386360000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 24POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12895 pcs | Data sheet | Unimate SLA 5.08 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (2 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Unimate SLA |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1386360000-ND 281-3155 SLAD 90/24 OG 4.5 |
| Operating Temperature | -20°C ~ 120°C | Number of Positions | 24 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.071" (27.20mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 24 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | 8A |
| Contact Tail Length | 0.177" (4.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Orange |
