1357800000

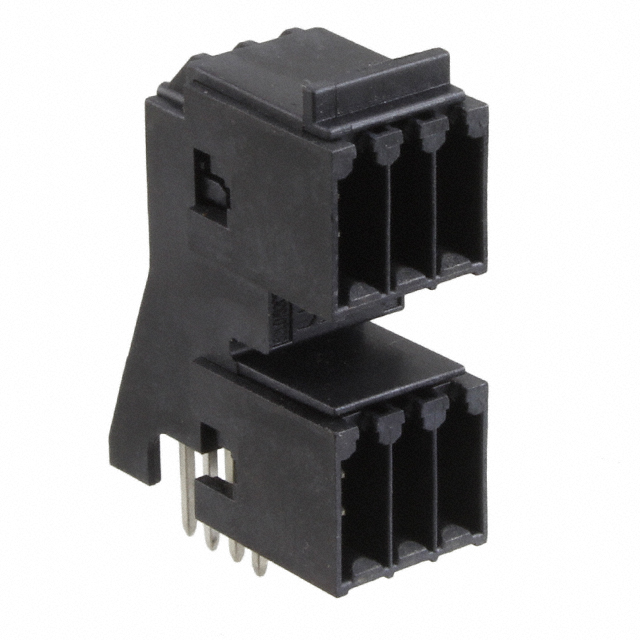

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1357800000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1357800000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1357800000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 12POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $2.182 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1357800000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17945 pcs | Data sheet | 1357800000 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 200V |
| Type | Header, Male Pins, Shrouded (4 Side), Stacked | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate S2C |
| Screw Size | - | Positions Per Level | 6, 6 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-3011 |
| Operating Temperature | -50°C ~ 120°C | Number of Positions | 12 |
| Number of Levels | 2, 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.252" (31.80mm) | Ingress Protection | IP20 |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side), Stacked 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 9.5A | Current - IEC | 7.9A |
| Contact Tail Length | 0.126" (3.20mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
