Home > Products > Connectors, Interconnects > Terminal Blocks - Headers, Plugs and Sockets > 1290390000

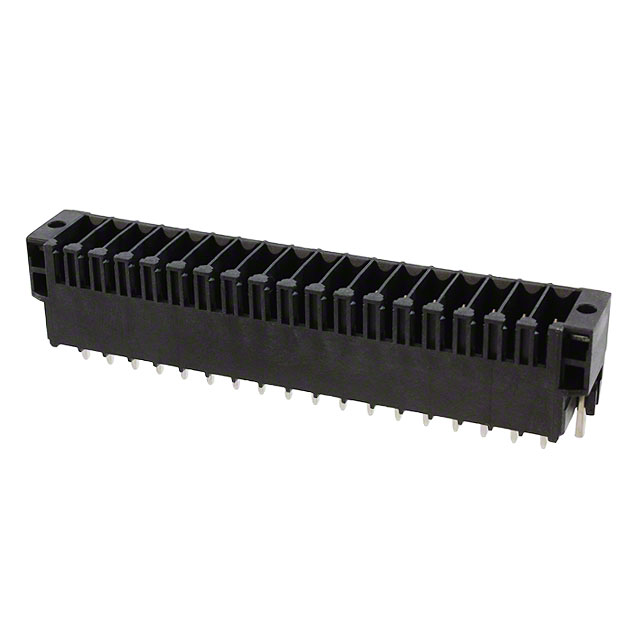

1290390000

1290390000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1290390000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1290390000
Manufacturer Weidmuller
Description TERM BLOCK HDR 36POS VERT 3.5MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 7902 pcs
Reference Price
(In US Dollars)		24 pcs
$4.346

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$4.346

Product parameter

Part Number 1290390000 Manufacturer Weidmuller
Description TERM BLOCK HDR 36POS VERT 3.5MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 7902 pcs Data sheet B2CF, S2C Series Preliminary
Category Connectors, Interconnects Wire Strip Length -
Wire Gauge or Range - mm² - Wire Gauge or Range - AWG -
Voltage - UL 150V Voltage - IEC 200V
Type Header, Male Pins, Shrouded (4 Side) Torque - Screw -
Termination Style Solder Series Omnimate S2C
Screw Size - Positions Per Level 18
Plug Wire Entry - Pitch 0.138" (3.50mm)
Packaging Bulk Other Names 281-2991
Operating Temperature -50°C ~ 120°C Number of Positions 36
Number of Levels 2 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 12 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Height 0.559" (14.20mm) Ingress Protection IP20
Housing Material Liquid Crystal Polymer (LCP), Glass Filled Header Orientation Vertical
Features Mating Flange, Solder Retention Detailed Description 36 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Current - UL 10A Current - IEC 13.4A
Contact Tail Length 0.138" (3.50mm) Contact Mating Finish Tin
Contact Material Copper Alloy Color Black
