Home > Products > Connectors, Interconnects > Terminal Blocks - Headers, Plugs and Sockets > 1289620000

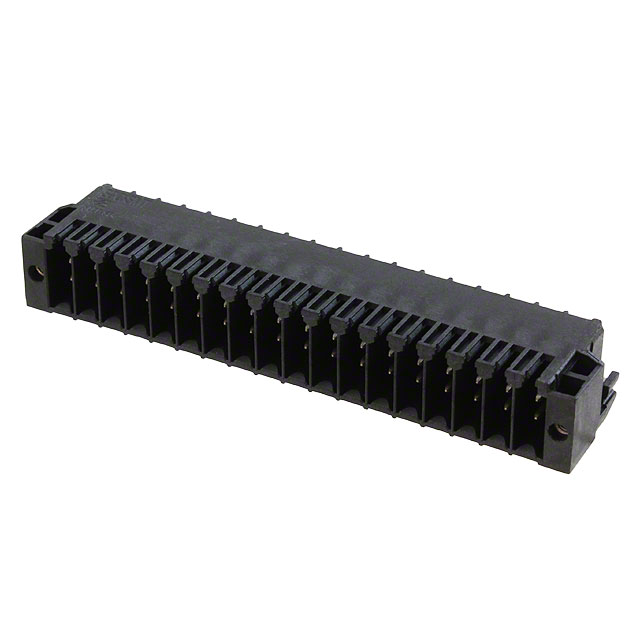

1289620000

1289620000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1289620000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1289620000
Manufacturer Weidmuller
Description TERM BLOCK HDR 36POS 90DEG 3.5MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 7279 pcs
Reference Price
(In US Dollars)		24 pcs
$4.516

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$4.516

Product parameter

Part Number 1289620000 Manufacturer Weidmuller
Description TERM BLOCK HDR 36POS 90DEG 3.5MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 7279 pcs Data sheet B2CF, S2C Series Preliminary
Category Connectors, Interconnects Wire Strip Length -
Wire Gauge or Range - mm² - Wire Gauge or Range - AWG -
Voltage - UL 150V Voltage - IEC 200V
Type Header, Male Pins, Shrouded (4 Side) Torque - Screw -
Termination Style Solder Series Omnimate S2C
Screw Size - Positions Per Level 18
Plug Wire Entry - Pitch 0.138" (3.50mm)
Packaging Bulk Other Names 281-2993
Operating Temperature -50°C ~ 120°C Number of Positions 36
Number of Levels 2 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 12 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Height 0.425" (10.80mm) Ingress Protection IP20
Housing Material Liquid Crystal Polymer (LCP), Glass Filled Header Orientation 90°, Right Angle
Features Mating Flange, Solder Retention Detailed Description 36 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Current - UL 10A Current - IEC 13.4A
Contact Tail Length 0.126" (3.20mm) Contact Mating Finish Tin
Contact Material Copper Alloy Color Black
