1289340000

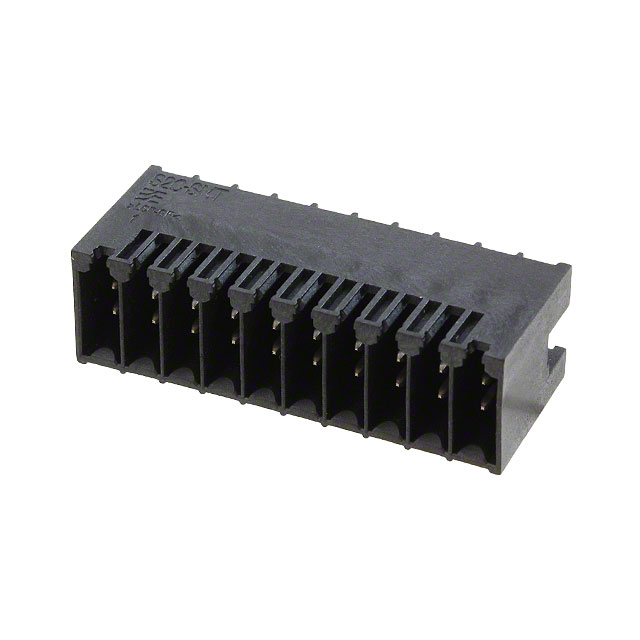

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1289340000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1289340000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1289340000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 20POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.972 | $2.545 | $2.429 | $2.183 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.067 | $1.873 | $1.744 | $1.647 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1289340000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 20POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19053 pcs | Data sheet | B2CF, S2C Series Preliminary |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 200V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate S2C |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-3002 |
| Operating Temperature | -50°C ~ 120°C | Number of Positions | 20 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.425" (10.80mm) | Ingress Protection | IP20 |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | 13.4A |
| Contact Tail Length | 0.126" (3.20mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
