1278030000

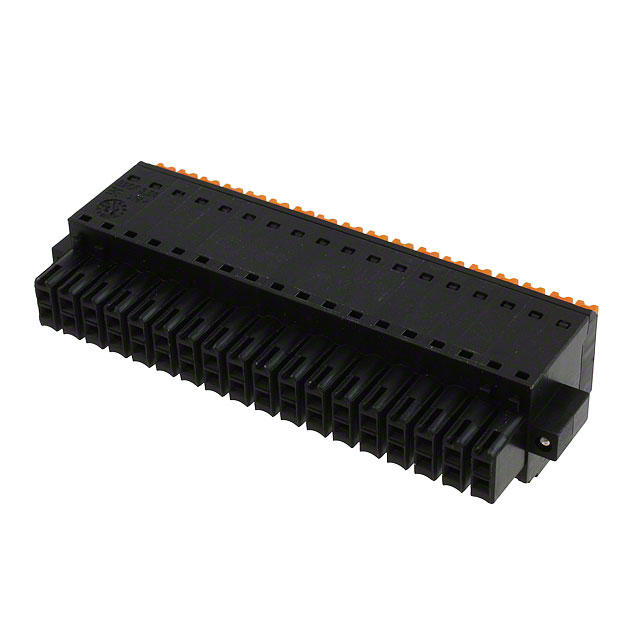

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1278030000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1278030000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1278030000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 36POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $9.171 | $8.805 | $8.50 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.194 | $7.949 | $7.796 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1278030000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 36POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4275 pcs | Data sheet | B2CF, S2C Series Preliminary |
| Category | Connectors, Interconnects | Wire Strip Length | 10mm |
| Wire Gauge or Range - mm² | 0.14-1.5mm² | Wire Gauge or Range - AWG | 16-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | Omnimate B2CF |
| Screw Size | - | Positions Per Level | 18 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 281-3036 |
| Operating Temperature | -50°C ~ 120°C | Number of Positions | 36 |
| Number of Levels | 2 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.598" (15.19mm) | Ingress Protection | IP20 |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 36 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 9.5A | Current - IEC | 13.4A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
