1089660000

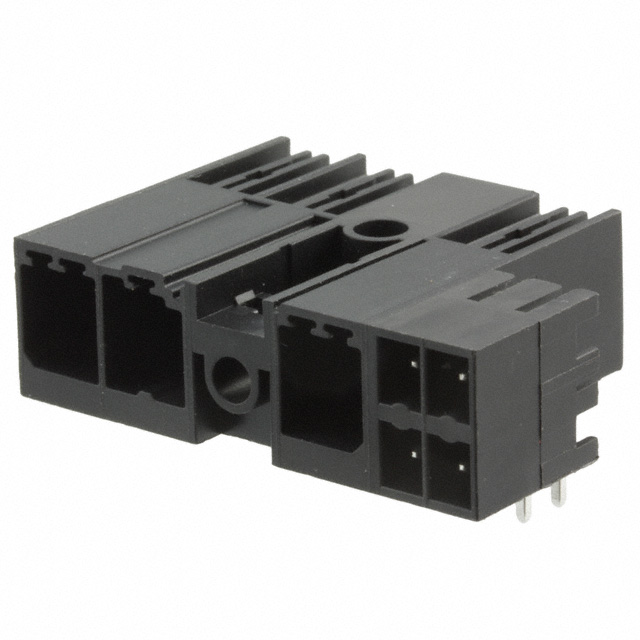

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1089660000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1089660000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1089660000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 7POS 90DEG 7.62MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 48 pcs | ||||
|---|---|---|---|---|---|
| $2.172 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1089660000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 7POS 90DEG 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16737 pcs | Data sheet | Hybrid Power Connectors |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 1kV |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SV |
| Screw Size | - | Positions Per Level | 7 (3 Power + 4 Signal) |
| Plug Wire Entry | - | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 281-3057 SV 7.62HP/03/90MF3 SC/04R |
| Operating Temperature | -50°C ~ 130°C | Number of Positions | 7 |
| Number of Levels | Hybrid | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.449" (11.40mm) | Ingress Protection | IP20 |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Header Orientation | 90°, Right Angle |
| Features | Latch Holder | Detailed Description | 7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole |
| Current - UL | 35A | Current - IEC | 41A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
