1063260000

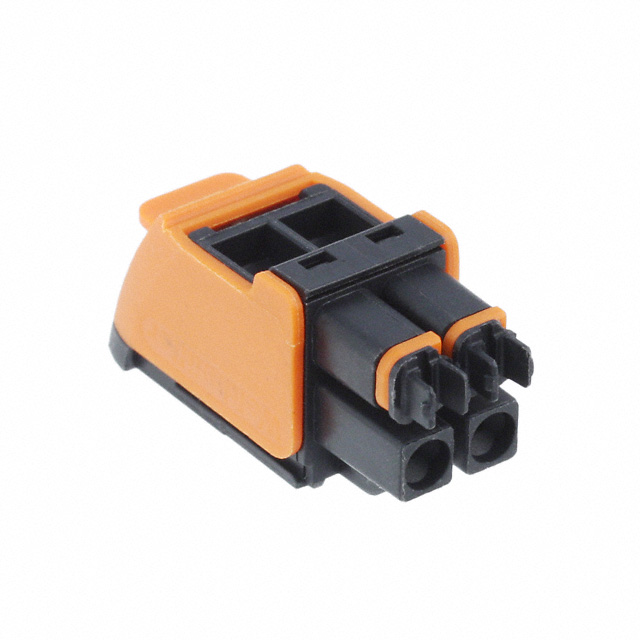

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1063260000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1063260000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1063260000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 2POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 150 pcs | ||||
|---|---|---|---|---|---|
| $0.985 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1063260000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39723 pcs | Data sheet | 1063260000CH20M12 & CH20M22 Assembly InstrCH20M12 Guide |
| Category | Connectors, Interconnects | Wire Strip Length | 8mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Plug, Female Sockets | Torque - Screw | 0.4-0.6 Nm (3.5-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | CH20M |
| Screw Size | M2.5 | Positions Per Level | 2 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 277-2786 277-2786-ND 281-2786 BHZ 5.00/02/90LH BK/OR |
| Operating Temperature | -50°C ~ 120°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.212" (30.78mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Header Orientation | - |
| Features | Ejector Latches, Retention Latches (Non-Wire Side) | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
