1013580000

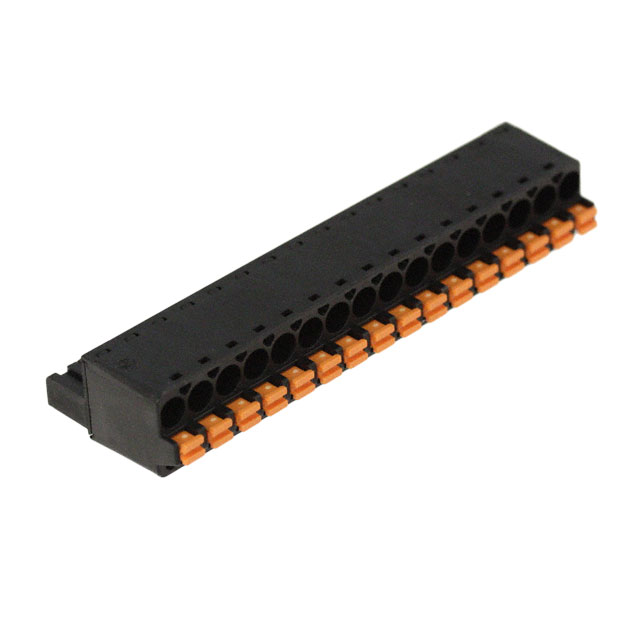

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1013580000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1013580000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1013580000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 16POS STR 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 18 pcs | ||||
|---|---|---|---|---|---|
| $4.059 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1013580000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 16POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8971 pcs | Data sheet | 1013580000 |
| Category | Connectors, Interconnects | Wire Strip Length | 10mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | Omnimate BL |
| Screw Size | - | Positions Per Level | 16 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 281-2736 |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 16 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.559" (14.20mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 16 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 18.5A | Current - IEC | 24A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
