Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > NXPLQSC10650Q

NXPLQSC10650Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NXPLQSC10650Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NXPLQSC10650Q
Manufacturer	WeEn Semiconductors Co., Ltd
Description	DIODE SCHOTTKY 650V 10A TO220AC
Lead Free Status / RoHS Status

~~In Stock~~ 58001 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$1.275	$1.144	$0.938	$0.798	$0.673

Product parameter
Data sheet

Product parameter

Part Number	NXPLQSC10650Q	Manufacturer	WeEn Semiconductors Co., Ltd
Description	DIODE SCHOTTKY 650V 10A TO220AC	Lead Free Status / RoHS Status
Quantity Available	58001 pcs	Data sheet	NXPLQSC10650
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.85V @ 10A
Voltage - DC Reverse (Vr) (Max)	650V	Supplier Device Package	TO-220AC
Speed	No Recovery Time > 500mA (Io)	Series	-
Reverse Recovery Time (trr)	0ns	Packaging	Tube
Package / Case	TO-220-2	Other Names	1740-1223 934070147127
Operating Temperature - Junction	175°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Diode Type	Silicon Carbide Schottky
Detailed Description	Diode Silicon Carbide Schottky 650V 10A Through Hole TO-220AC	Current - Reverse Leakage @ Vr	230µA @ 650V
Current - Average Rectified (Io)	10A	Capacitance @ Vr, F	250pF @ 1V, 1MHz

Related products
Related news

Related products

NXPMOSFET-DESIGNKIT Image

Part#:~~NXPMOSFET-DESIGNKIT~~
Manufacturers:~~NXP Semiconductors / Freescale~~
Description:~~KIT DESIGN MOSFET LFPAK~~
In Stock:~~1278~~

~~$25.567/pcs~~RFQ

NXP3875YR Image

Part#:~~NXP3875YR~~
Manufacturers:~~Nexperia~~
Description:~~TRANS NPN 50V 0.15A TO-236AB~~
In Stock:~~1407075~~

~~$0.017/pcs~~RFQ

NXPESD1-KIT Image

Part#:~~NXPESD1-KIT~~
Manufacturers:~~Nexperia~~
Description:~~KIT ESD PROTECT DIODES 18VALUES~~
In Stock:~~1899~~

~~$17.414/pcs~~RFQ

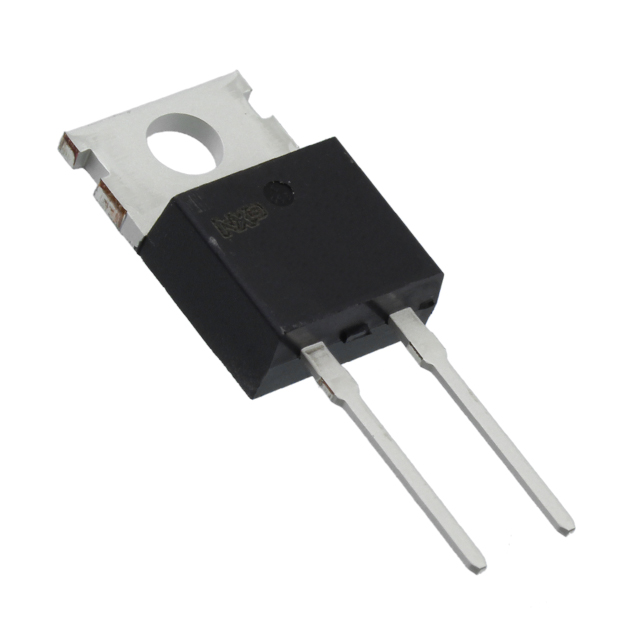

NXPSC04650Q Image
