Home > Products > Fans, Thermal Management > Thermal - Heat Sinks > LTN20069

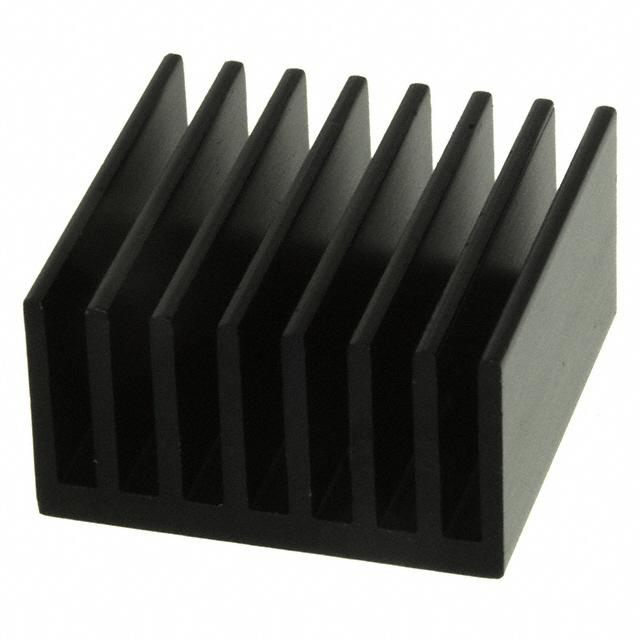

LTN20069

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTN20069 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LTN20069
Manufacturer	Wakefield-Vette
Description	HEAT SINK BGA/PGA 16.5X16.5X8.9
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 64352 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.521	$0.497	$0.483	$0.47	$0.444
	$0.418	$0.392	$0.366	$0.353

Product parameter
Data sheet

Product parameter

Part Number	LTN20069	Manufacturer	Wakefield-Vette
Description	HEAT SINK BGA/PGA 16.5X16.5X8.9	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64352 pcs	Data sheet	LTN20069 Drawing Thermal Interface Part Number Guide LTN20069 Datasheet
Category	Fans, Thermal Management	Width	0.653" (16.59mm)
Type	Board Level	Thermal Resistance @ Natural	-
Thermal Resistance @ Forced Air Flow	8.00°C/W @ 500 LFM	Shape	Square, Fins
Series	Penguin	Power Dissipation @ Temperature Rise	-
Package Cooled	Assorted (BGA, LGA, CPU, ASIC...)	Other Names	345-1101 LTN20069-T5-ND LTN20069T5
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Finish	Black Anodized
Material	Aluminum	Manufacturer Standard Lead Time	12 Weeks
Length	0.650" (16.51mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.350" (8.89mm)	Diameter	-
Detailed Description	Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Board Level	Attachment Method	Thermal Tape, Adhesive (Included)
