Home > Products > Fans, Thermal Management > Thermal - Heat Sinks > D10850-40

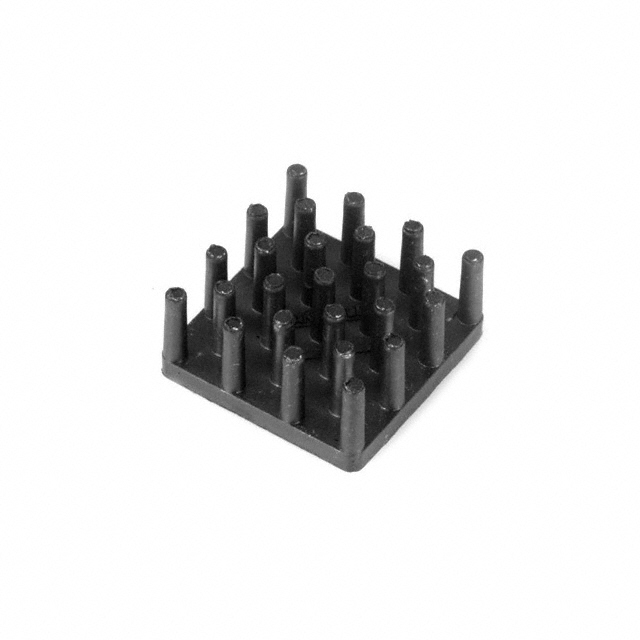

D10850-40

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D10850-40 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D10850-40
Manufacturer	Wakefield-Vette
Description	HEATSINK 128PQFP COMPOSITE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 56326 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.821	$0.797	$0.776	$0.733	$0.69
	$0.647	$0.625	$0.56	$0.55

Product parameter
Data sheet

Product parameter

Part Number	D10850-40	Manufacturer	Wakefield-Vette
Description	HEATSINK 128PQFP COMPOSITE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56326 pcs	Data sheet	D10850-40 Datasheet Thermal Management for BGAs
Category	Fans, Thermal Management	Width	0.850" (21.59mm)
Type	Top Mount	Thermal Resistance @ Natural	-
Thermal Resistance @ Forced Air Flow	20.00°C/W @ 100 LFM	Shape	Square, Pin Fins
Series	Deltem™	Power Dissipation @ Temperature Rise	2.5W @ 90°C
Package Cooled	BGA	Other Names	345-1077 D1085040
Moisture Sensitivity Level (MSL)	Not Applicable	Material Finish	-
Material	Composite	Manufacturer Standard Lead Time	12 Weeks
Length	0.850" (21.59mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.400" (10.16mm)	Diameter	-
Detailed Description	Heat Sink BGA Composite 2.5W @ 90°C Top Mount	Attachment Method	Thermal Tape, Adhesive (Not Included)
