680-125A

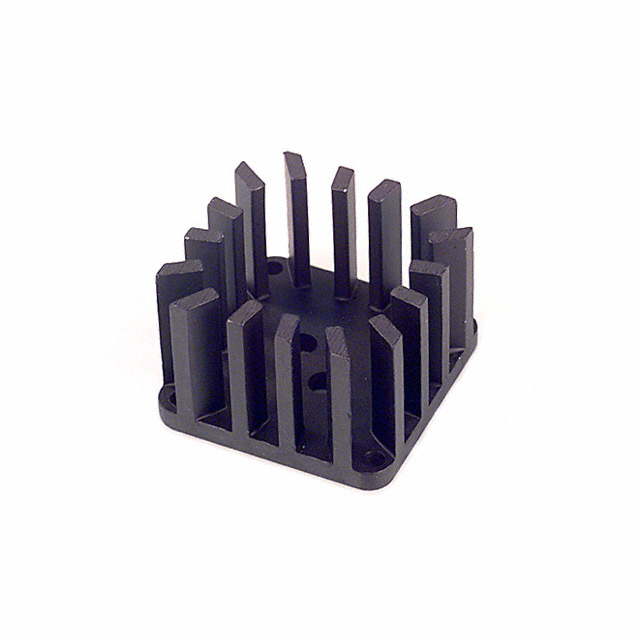

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680-125A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680-125A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 680-125A |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK POWER TO-3 BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.931 | $3.825 | $3.612 | $3.40 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.187 | $2.975 | $2.762 | $2.709 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 680-125A | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK POWER TO-3 BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13537 pcs | Data sheet | Board Level Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 1.810" (45.97mm) |
| Type | Board Level | Thermal Resistance @ Natural | 6.00°C/W |
| Thermal Resistance @ Forced Air Flow | 1.50°C/W @ 400 LFM | Shape | Square, Pin Fins |
| Series | 680 | Power Dissipation @ Temperature Rise | 7.5W @ 45°C |
| Package Cooled | TO-3 | Other Names | 345-1051 680125A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.810" (45.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.250" (31.75mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 7.5W @ 45°C Board Level | Attachment Method | Bolt On |
