512-9M

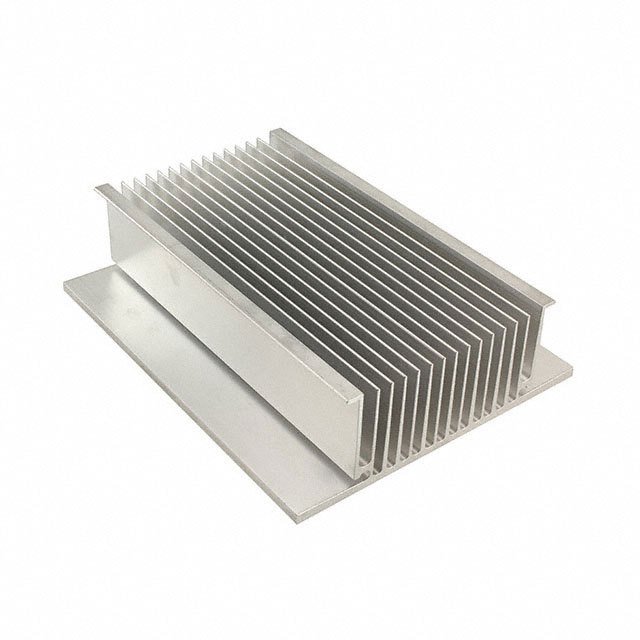

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 512-9M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 512-9M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 512-9M |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK FOR PWR MOD/IGBT/RELAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $30.026 | $28.15 | $26.274 | $25.335 | $24.397 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 512-9M | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK FOR PWR MOD/IGBT/RELAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1440 pcs | Data sheet | 510-12 Series DatasheetExtruded Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 7.200" (182.88mm) |
| Type | Top Mount, Extrusion | Thermal Resistance @ Natural | 0.56°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | 512 | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Power Modules | Other Names | 345-1217 512-9M-ND 5129M |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | - |
| Material | Aluminum | Manufacturer Standard Lead Time | 5 Weeks |
| Length | 9.000" (228.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 2.350" (59.69mm) | Diameter | - |
| Detailed Description | Heat Sink Power Modules Aluminum Top Mount, Extrusion | Attachment Method | Adhesive |
