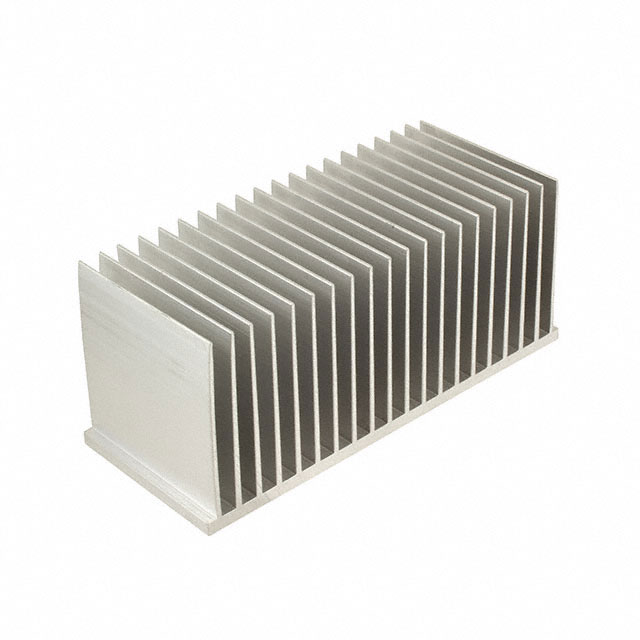

510-3M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 510-3M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 510-3M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 510-3M |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK FOR PWR MOD/IGBT/RELAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $21.363 | $20.107 | $18.85 | $17.593 | $16.965 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 510-3M | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK FOR PWR MOD/IGBT/RELAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1761 pcs | Data sheet | 510-12 Series DatasheetExtruded Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 7.380" (187.45mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 0.56°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | 510 | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Power Modules | Other Names | 345-1197 510-3M-ND 5103M |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | - |
| Material | Aluminum | Manufacturer Standard Lead Time | 5 Weeks |
| Length | 3.000" (76.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 3.106" (78.89mm) | Diameter | - |
| Detailed Description | Heat Sink Power Modules Aluminum Top Mount | Attachment Method | Adhesive |
