Home > Products > Fans, Thermal Management > Thermal - Heat Sinks > 476W

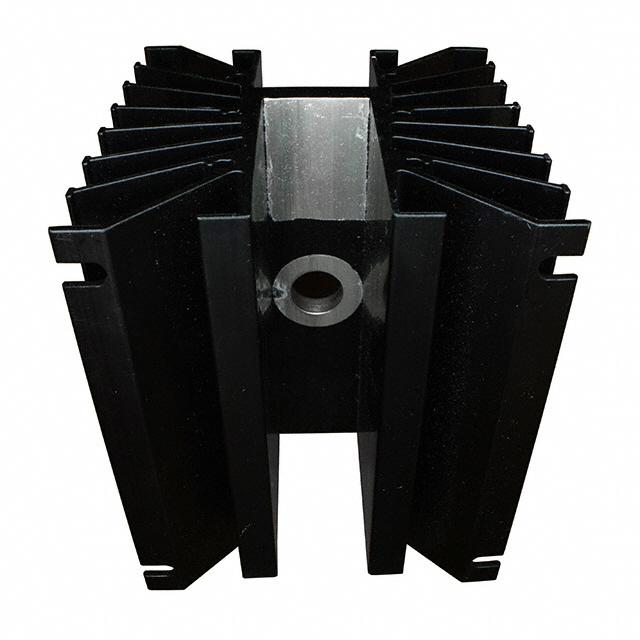

476W

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 476W with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	476W
Manufacturer	Wakefield-Vette
Description	HEATSINK NATURAL CONVECTIONC2025
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1502 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$23.019

Product parameter
Data sheet

Product parameter

Part Number	476W	Manufacturer	Wakefield-Vette
Description	HEATSINK NATURAL CONVECTIONC2025	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1502 pcs	Data sheet	465, 476 Series Datasheet Extruded Heat Sinks Catalog
Category	Fans, Thermal Management	Width	5.000" (127.00mm)
Type	Board Level	Thermal Resistance @ Natural	0.50°C/W
Thermal Resistance @ Forced Air Flow	0.20°C/W @ 500 LFM	Shape	Rectangular, Fins
Series	476	Power Dissipation @ Temperature Rise	50.0W @ 25°C
Package Cooled	Stud Mounted Diode	Other Names	Q2409149
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Finish	Black Anodized
Material	Aluminum	Manufacturer Standard Lead Time	6 Weeks
Length	6.000" (152.40mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	5.000" (127.00mm)	Diameter	-
Detailed Description	Heat Sink Stud Mounted Diode Aluminum 50.0W @ 25°C Board Level	Attachment Method	Bolt On
