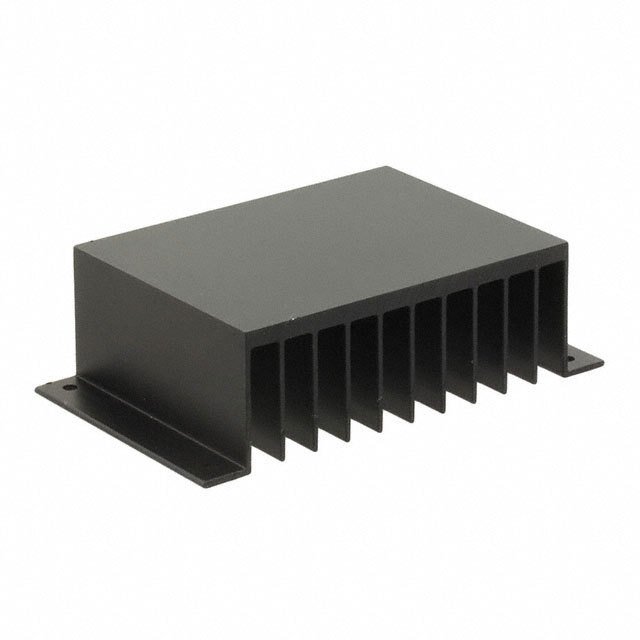

394-1AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 394-1AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 394-1AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 394-1AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK 3X1.5X5" SSR/IGBT/POWER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.192 | $7.735 | $7.28 | $6.825 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.37 | $5.915 | $5.801 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 394-1AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK 3X1.5X5" SSR/IGBT/POWER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5458 pcs | Data sheet | 394,395,396 Series |
| Category | Fans, Thermal Management | Width | 5.000" (127.00mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 1.80°C/W |
| Thermal Resistance @ Forced Air Flow | 0.90°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | 394 | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Power Modules | Other Names | 345-1175 3941AB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 3.000" (76.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.500" (38.10mm) | Diameter | - |
| Detailed Description | Heat Sink Power Modules Aluminum Top Mount | Attachment Method | Bolt On |
