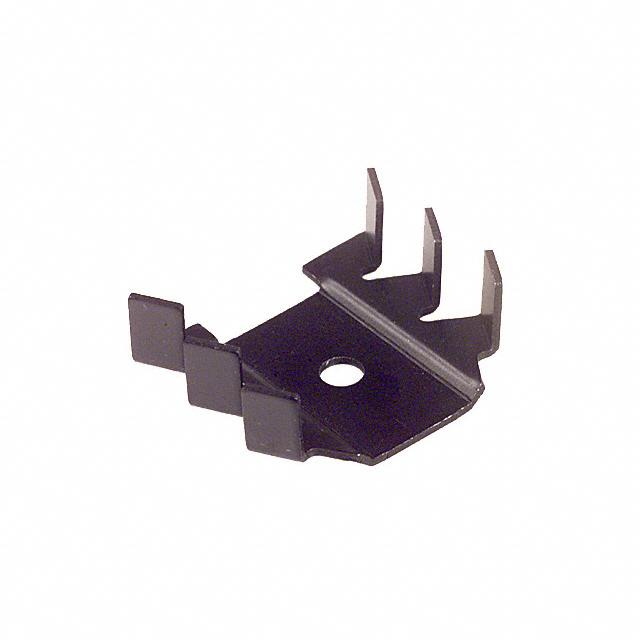

291-H36AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 291-H36AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 291-H36AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 291-H36AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK TO-220 BOLT-ON BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.203 | $0.194 | $0.184 | $0.179 | $0.177 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.165 | $0.155 | $0.141 | $0.136 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 291-H36AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK TO-220 BOLT-ON BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160087 pcs | Data sheet | Board Level Heat Sinks Catalog291 Series Datasheet |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level | Thermal Resistance @ Natural | 34.00°C/W |
| Thermal Resistance @ Forced Air Flow | 16.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | 291 | Power Dissipation @ Temperature Rise | 2.0W @ 68°C |
| Package Cooled | TO-220 | Other Names | 291H36AB 345-1025 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.860" (21.84mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.360" (9.14mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 68°C Board Level | Attachment Method | Bolt On |
