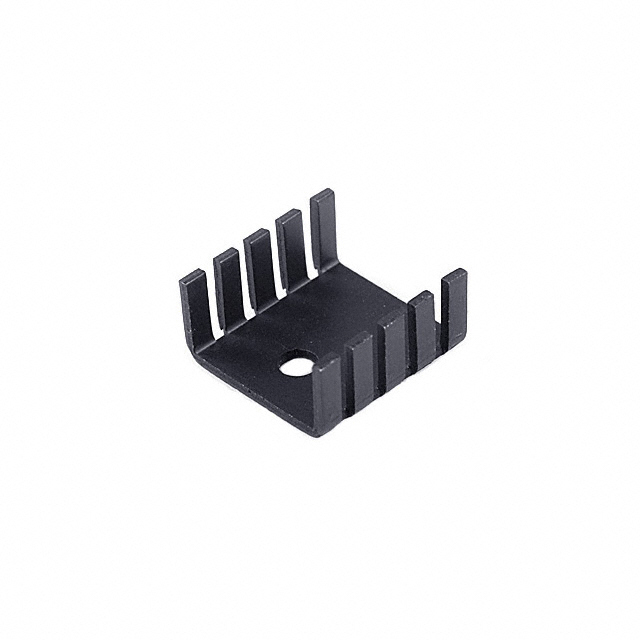

273-AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 273-AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 273-AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 273-AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK TO-220 LOW HEIGHT BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.132 | $0.126 | $0.12 | $0.117 | $0.115 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.107 | $0.101 | $0.092 | $0.088 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 273-AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK TO-220 LOW HEIGHT BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 272229 pcs | Data sheet | Board Level Heat Sinks Catalog273 Series Datasheet |
| Category | Fans, Thermal Management | Width | 0.750" (19.05mm) |
| Type | Board Level | Thermal Resistance @ Natural | 24.50°C/W |
| Thermal Resistance @ Forced Air Flow | 7.20°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | 273 | Power Dissipation @ Temperature Rise | 2.0W @ 49°C |
| Package Cooled | TO-220, TO-218 | Other Names | 273AB 345-1022 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.375" (9.52mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220, TO-218 Aluminum 2.0W @ 49°C Board Level | Attachment Method | Bolt On |
