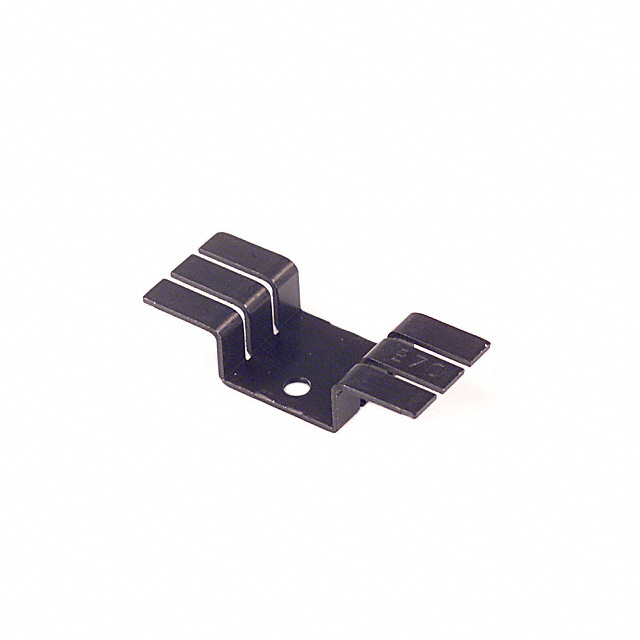

270-AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 270-AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 270-AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 270-AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK TO-220 SM FOOTPRINT BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.113 | $0.107 | $0.101 | $0.099 | $0.097 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.091 | $0.085 | $0.077 | $0.075 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 270-AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK TO-220 SM FOOTPRINT BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 273066 pcs | Data sheet | Board Level Heat Sinks Catalog270, 272, 280 Series Datasheet |
| Category | Fans, Thermal Management | Width | 1.750" (44.45mm) |
| Type | Board Level | Thermal Resistance @ Natural | 17.50°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | 270 | Power Dissipation @ Temperature Rise | 4.0W @ 70°C |
| Package Cooled | TO-220, TO-202 | Other Names | 270AB 345-1041 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.700" (17.78mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.375" (9.52mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220, TO-202 Aluminum 4.0W @ 70°C Board Level | Attachment Method | Bolt On |
