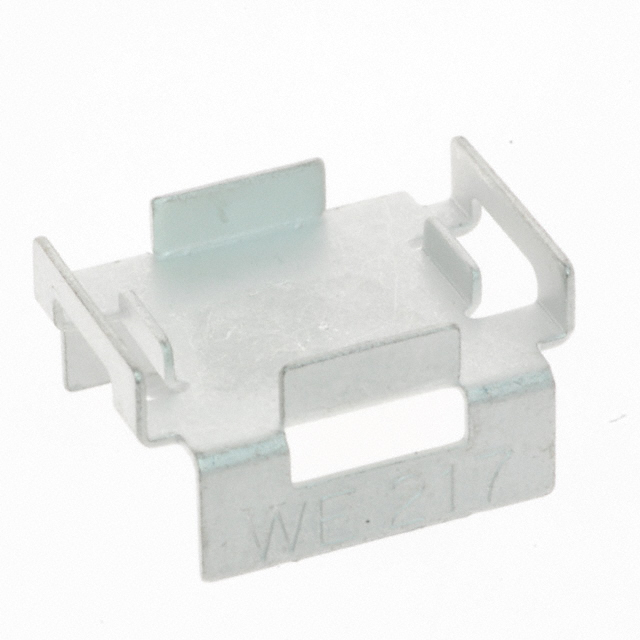

217-36CTE6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 217-36CTE6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 217-36CTE6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 217-36CTE6 |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK DPAK SMT TIN PLATED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.136 | $0.13 | $0.123 | $0.12 | $0.118 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.11 | $0.104 | $0.094 | $0.091 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 217-36CTE6 | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK DPAK SMT TIN PLATED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 208190 pcs | Data sheet | Board Level Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 0.600" (15.24mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 55.00°C/W |
| Thermal Resistance @ Forced Air Flow | 16.00°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | 217 | Power Dissipation @ Temperature Rise | 1.0W @ 55°C |
| Package Cooled | D²Pak (TO-263), SOL-20, SOT-223, TO-220 | Other Names | 139-808351-002 217-36CTE6-ND 21736CTE6 345-1099 Q2679969 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.740" (18.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.360" (9.14mm) | Diameter | - |
| Detailed Description | Heat Sink D²Pak (TO-263), SOL-20, SOT-223, TO-220 Copper 1.0W @ 55°C Top Mount | Attachment Method | SMD Pad |
