VOW2611-X017T

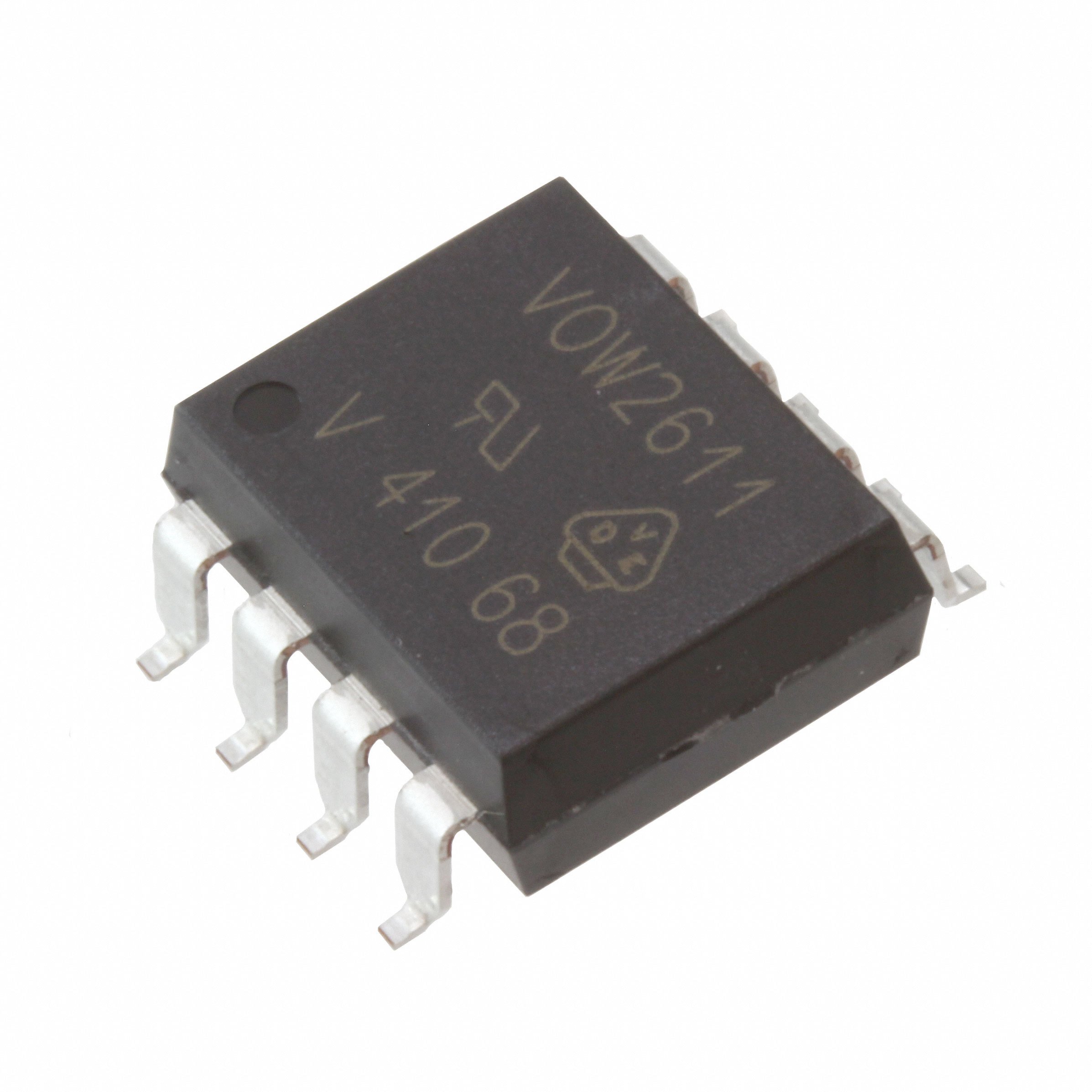

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VOW2611-X017T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VOW2611-X017T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VOW2611-X017T |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV OPN COLLECTOR 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 2250 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.513 | $0.486 | $0.46 | $0.442 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VOW2611-X017T | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV OPN COLLECTOR 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80449 pcs | Data sheet | VOW137, VOW2611 Datasheet |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Supplier Device Package | 8-SMD | Series | - |
| Rise / Fall Time (Typ) | 14ns, 7ns | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Gull Wing |
| Output Type | Open Collector | Other Names | VOW2611-X017TTR |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10MBd Open Collector 5300Vrms 1 Channel 25kV/µs CMTI 8-SMD | Data Rate | 10MBd |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 20mA |
| Common Mode Transient Immunity (Min) | 25kV/µs |
