VOL3120-X001T

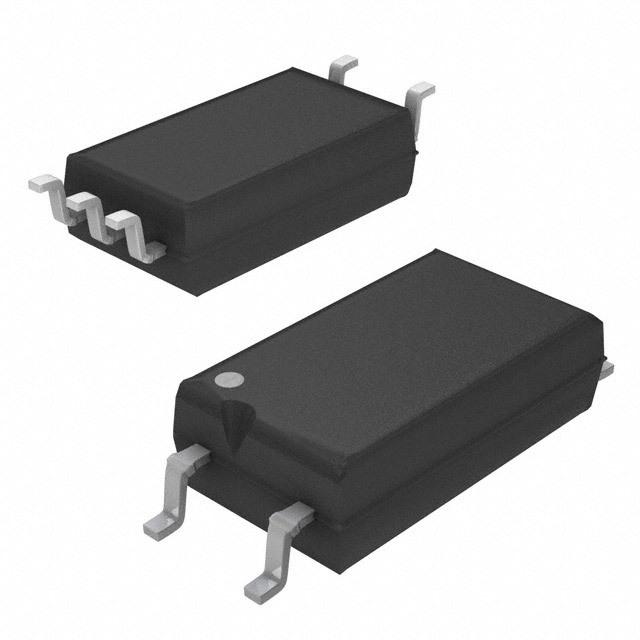

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VOL3120-X001T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VOL3120-X001T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VOL3120-X001T |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV 1CH GATE DVR 5LSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.312 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | VOL3120-X001T | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV 1CH GATE DVR 5LSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66187 pcs | Data sheet | VOL3120-X001T |
| Category | Isolators | Voltage - Supply | 15 V ~ 32 V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.36V |
| Technology | Optical Coupling | Supplier Device Package | 5-LSOP |
| Series | - | Rise / Fall Time (Typ) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 300ns | Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SOIC (0.295", 7.50mm Width), 5 Leads |
| Other Names | VOL3120-X001TTR | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 41 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2.5A Gate Driver Optical Coupling 5300Vrms 1 Channel 5-LSOP |
| Current - Peak Output | 2.5A | Current - Output High, Low | 2.5A, 2.5A |
| Current - DC Forward (If) (Max) | 25mA | Common Mode Transient Immunity (Min) | 48kV/µs |
| Approvals | CQC, cUR, UR, VDE |
