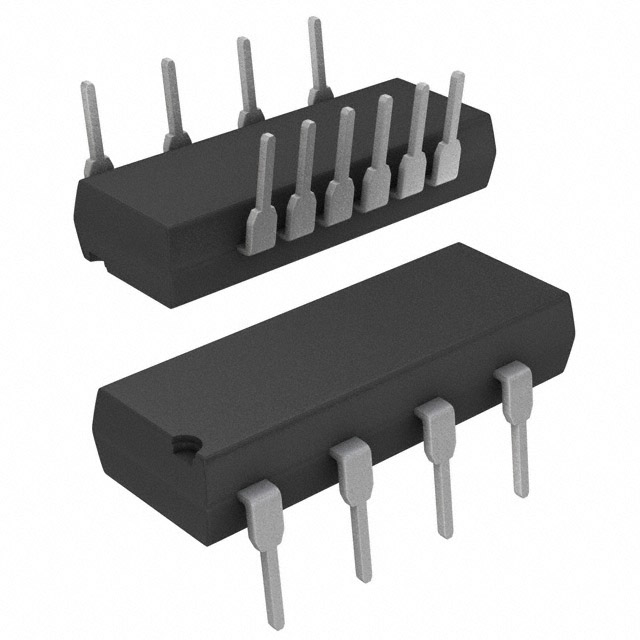

VO3526
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VO3526 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VO3526 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VO3526 |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISOLTR 5.3KV PWR TRIAC 10DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.694 | $0.564 | $0.434 | $0.39 | $0.347 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.295 | $0.243 | $0.231 | $0.226 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VO3526 | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISOLTR 5.3KV PWR TRIAC 10DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103808 pcs | Data sheet | VO3526 |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 600V | Voltage - Isolation | 5300Vrms |
| Voltage - Forward (Vf) (Typ) | 1.4V (Max) | Turn On Time | - |
| Supplier Device Package | 10-DIP | Static dV/dt (Min) | 210V/µs (Typ) |
| Series | - | Packaging | Tube |
| Package / Case | 16-DIP (0.300", 7.62mm), 10 Leads | Output Type | Triac, Power |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac, Power Output 5300Vrms 1 Channel 10-DIP | Current - On State (It (RMS)) (Max) | 1A |
| Current - LED Trigger (Ift) (Max) | 10mA | Current - Hold (Ih) | 25mA |
| Current - DC Forward (If) (Max) | 50mA | Approvals | cUR, UR, VDE |
