TDSR1060

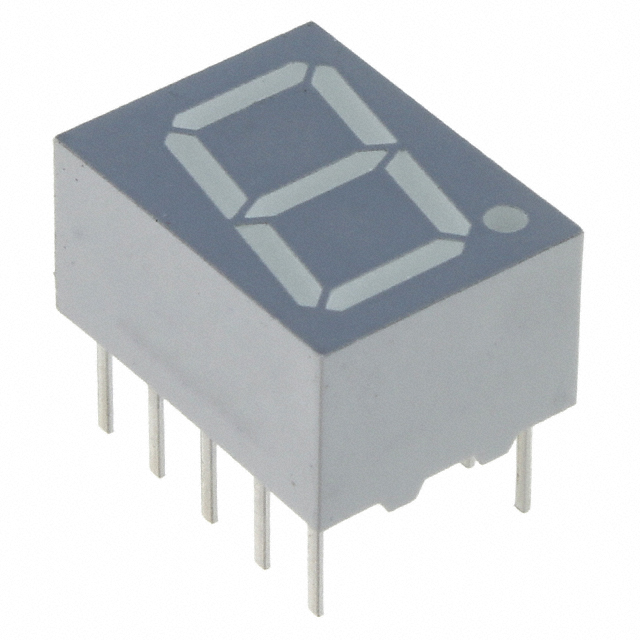

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TDSR1060 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TDSR1060 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TDSR1060 |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | DISPLAY 7-SEG. 10MM RED LC C.C.- |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.627 | $0.557 | $0.413 | $0.359 | $0.323 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.287 | $0.247 | $0.233 | $0.224 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TDSR1060 | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | DISPLAY 7-SEG. 10MM RED LC C.C.- | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89233 pcs | Data sheet | TDSR1050/60 |
| Category | Optoelectronics | Wavelength - Peak | 650nm |
| Voltage - Forward (Vf) (Typ) | 1.8V | Size / Dimension | 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm) |
| Series | - | Power Dissipation (Max) | 185mW |
| Packaging | Bulk | Package / Case | 10-DIP (0.300", 7.62mm) |
| Number of Characters | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Millicandela Rating | 3.6mcd | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Display Type | 7-Segment |
| Digit/Alpha Size | 0.39" (10.00mm) | Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 1.8V 1mA 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm) 10-DIP (0.300", 7.62mm) |
| Current - Test | 1mA | Common Pin | Common Cathode |
| Color | Red |
