TCET4600G

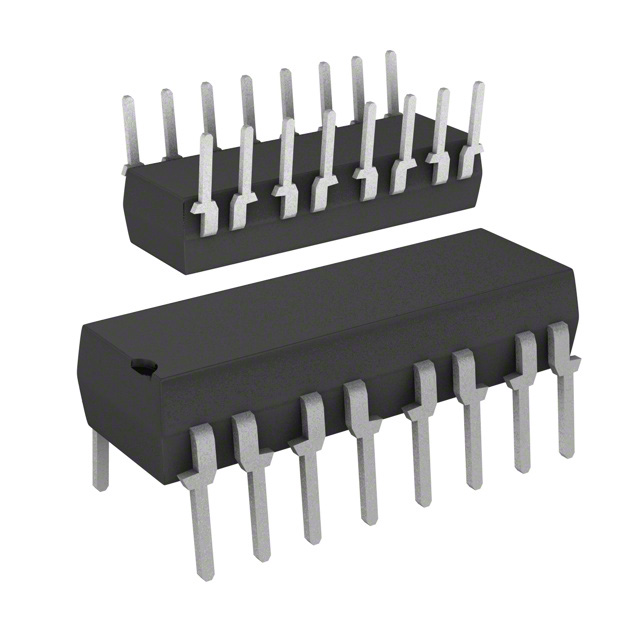

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCET4600G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCET4600G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCET4600G |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV 4CH TRANS 16DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.335 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCET4600G | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV 4CH TRANS 16DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63125 pcs | Data sheet | TCET2600, TCET4600 |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Supplier Device Package | 16-DIP | Series | - |
| Rise / Fall Time (Typ) | 3µs, 4.7µs | Packaging | Tube |
| Package / Case | 16-DIP (0.400", 10.16mm) | Output Type | Transistor |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | AC, DC | Detailed Description | Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP |
| Current Transfer Ratio (Min) | 20% @ 5mA | Current Transfer Ratio (Max) | 300% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 60mA |
