Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > SFH690C-X001T

SFH690C-X001T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFH690C-X001T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SFH690C-X001T
Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISOLATOR 3.75KV TRANS 4SOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 201434 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.098

Product parameter
Data sheet

Product parameter

Part Number	SFH690C-X001T	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISOLATOR 3.75KV TRANS 4SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	201434 pcs	Data sheet	SFH690x(x)T Option Information
Category	Isolators	Voltage - Output (Max)	70V
Voltage - Isolation	3750Vrms	Voltage - Forward (Vf) (Typ)	1.15V
Vce Saturation (Max)	300mV	Turn On / Turn Off Time (Typ)	5µs, 3µs
Supplier Device Package	4-SOP (2.54mm)	Series	-
Rise / Fall Time (Typ)	3µs, 4µs	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, Gull Wing	Output Type	Transistor
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Current Transfer Ratio (Min)	100% @ 5mA	Current Transfer Ratio (Max)	200% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA

Related products
Related news

Related products

SFH690D-X001T Image

Part#:~~SFH690D-X001T~~
Manufacturers:~~Vishay / Semiconductor - Opto Division~~
Description:~~OPTOISOLATOR 3.75KV TRANS 4SOP~~
In Stock:~~219321~~

~~$0.095/pcs~~RFQ

SFH690BT3 Image

Part#:~~SFH690BT3~~
Manufacturers:~~Electro-Films (EFI) / Vishay~~
Description:~~OPTOISOLATOR 3.75KV TRANS 4SOP~~
In Stock:~~230220~~

~~$0.082/pcs~~RFQ

Part#:~~SFH690AT~~
Manufacturers:~~Vishay / Semiconductor - Opto Division~~
Description:~~OPTOISOLATOR 3.75KV TRANS 4-SOP~~
In Stock:~~263007~~

~~$0.083/pcs~~RFQ

Part#:~~SFH6916-X001~~
Manufacturers:~~Vishay / Semiconductor - Opto Division~~
Description:~~OPTOISO 3.75KV 4CH TRANS 16SOP~~
In Stock:~~40116~~

~~$0.775/pcs~~RFQ

Part#:~~SFH690BT~~
Manufacturers:~~Vishay / Semiconductor - Opto Division~~
Description:~~OPTOISOLATOR 3.75KV TRANS 4-SOP~~
In Stock:~~232739~~

~~$0.102/pcs~~RFQ

Part#:~~SFH6916~~
Manufacturers:~~Vishay / Semiconductor - Opto Division~~
Description:~~OPTOISO 3.75KV 4CH TRANS 16-SOP~~
In Stock:~~41853~~

~~$0.772/pcs~~RFQ

Part#:~~SFH690DT~~
Manufacturers:~~Vishay / Semiconductor - Opto Division~~
Description:~~OPTOISOLATOR 3.75KV TRANS 4SOP~~
In Stock:~~287053~~

~~$0.084/pcs~~RFQ

Part#:~~SFH691AT~~
Manufacturers:~~Electro-Films (EFI) / Vishay~~
Description:~~OPTOISOLATOR 3.75KV TRANS 4-SOP~~
In Stock:~~165185~~

~~$0.118/pcs~~RFQ

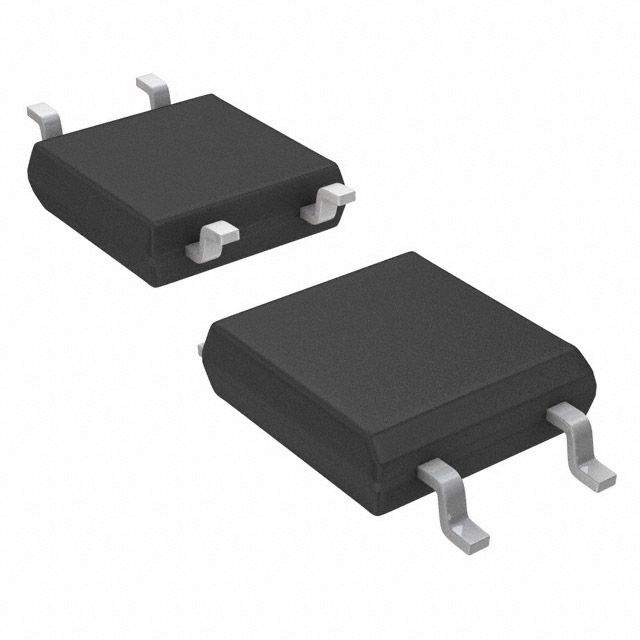

SFH690ABT Image
