SFH6747T

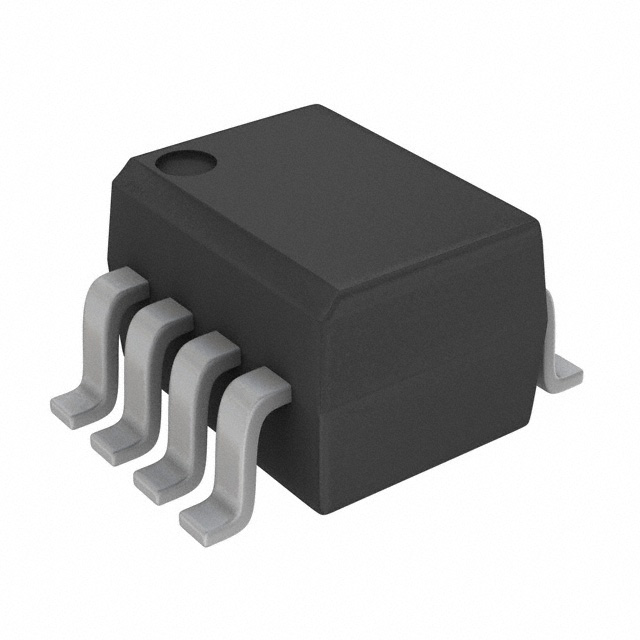

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFH6747T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFH6747T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFH6747T |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 3KV OPEN DRAIN 8SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.398 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SFH6747T | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 3KV OPEN DRAIN 8SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78735 pcs | Data sheet | SFH6745-47T,55-57T |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Isolation | 3000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Supplier Device Package | 8-SOIC | Series | - |
| Rise / Fall Time (Typ) | 23ns, 7ns | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Output Type | Open Drain | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10MBd Open Drain 3000Vrms 1 Channel 10kV/µs CMTI 8-SOIC |
| Data Rate | 10MBd | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 10kV/µs |
