MOC8104-X016

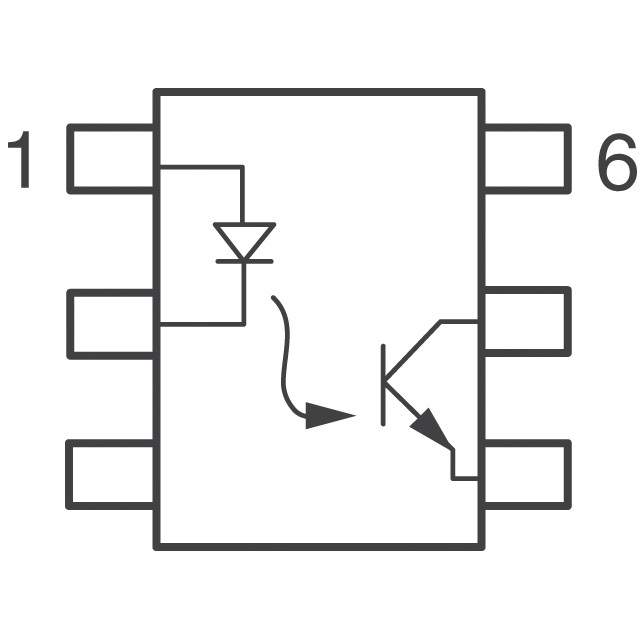

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC8104-X016 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC8104-X016 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC8104-X016 |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV TRANSISTOR 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.099 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC8104-X016 | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV TRANSISTOR 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 190864 pcs | Data sheet | MOC8101-05 |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 3µs, 2.3µs |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | 2µs, 2µs | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5300Vrms 1 Channel 6-DIP |
| Current Transfer Ratio (Min) | 160% @ 10mA | Current Transfer Ratio (Max) | 256% @ 10mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 60mA |
