MCT5211-X007

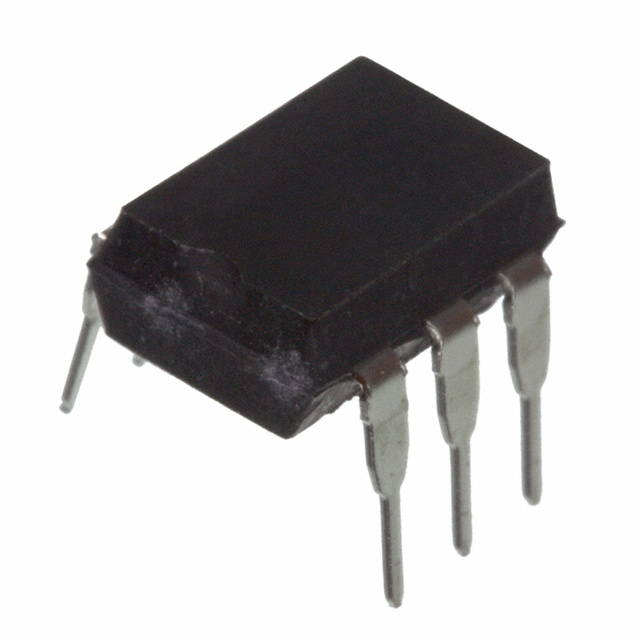

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCT5211-X007 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCT5211-X007 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCT5211-X007 |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCT5211-X007 | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4109 pcs | Data sheet | MCT5211 |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 20µs, 20µs |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 150% @ 1.6mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 40mA |
