Home > Products > Relays > Solid State Relays > LH1501BT

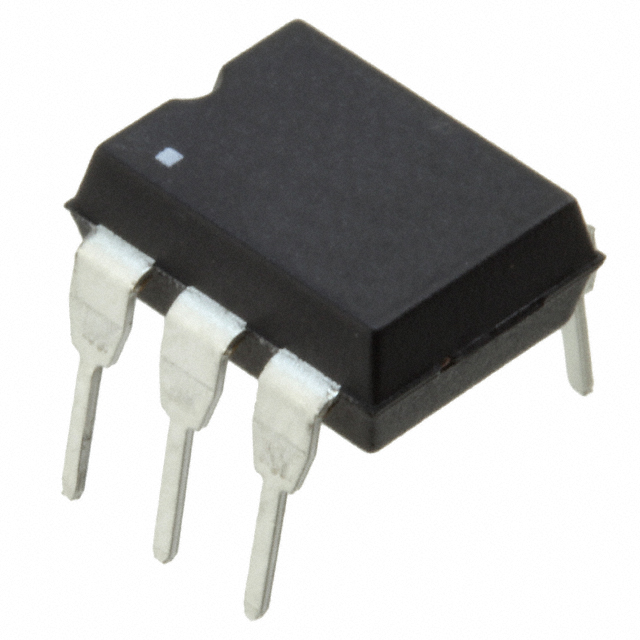

LH1501BT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LH1501BT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LH1501BT
Manufacturer	Vishay / Semiconductor - Opto Division
Description	SSR RELAY SPST-NC 150MA 0-350V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 50076 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.163	$1.092	$0.97	$0.922	$0.873
	$0.776	$0.728	$0.679	$0.655

Product parameter
Data sheet

Product parameter

Part Number	LH1501BT	Manufacturer	Vishay / Semiconductor - Opto Division
Description	SSR RELAY SPST-NC 150MA 0-350V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50076 pcs	Data sheet	LH1501BAB(TR),BT
Category	Relays	Voltage - Load	0V ~ 350V
Voltage - Input	1.26VDC	Termination Style	PC Pin
Supplier Device Package	6-DIP	Series	LH1501
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	AC, DC	On-State Resistance (Max)	20 Ohms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Load Current	150mA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Solid State Relay SPST-NC (1 Form B) 6-DIP (0.300", 7.62mm)
Circuit	SPST-NC (1 Form B)
