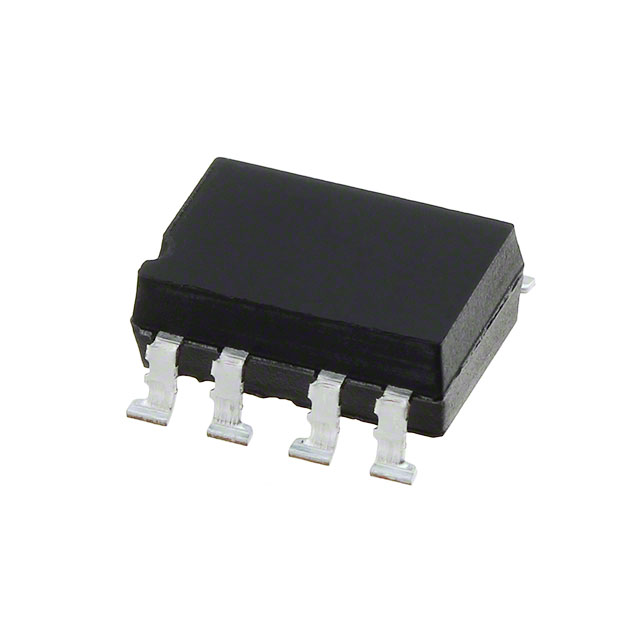

ILD2-X009T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ILD2-X009T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ILD2-X009T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ILD2-X009T |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV 2CH TRANS 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.228 | $0.216 | $0.211 | $0.203 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ILD2-X009T | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5.3KV 2CH TRANS 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92459 pcs | Data sheet | Option InformationILD1/2/5, ILQ1/2/5 |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 1.2µs, 2.3µs |
| Supplier Device Package | 8-SMD | Series | - |
| Rise / Fall Time (Typ) | 2.6µs, 2.2µs | Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing | Output Type | Transistor |
| Other Names | ILD2-X009T-ND ILD2-X009TTR |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5300Vrms 2 Channel 8-SMD | Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 500% @ 10mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 60mA |
