4N26-X009T

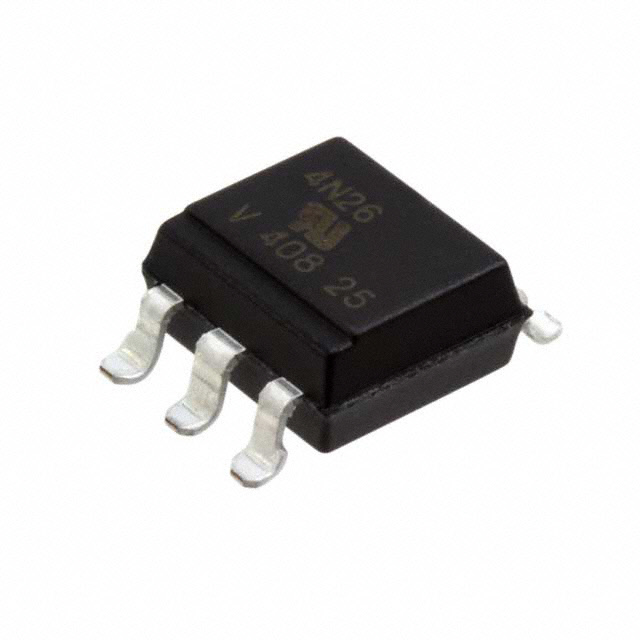

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4N26-X009T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4N26-X009T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4N26-X009T |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.296 | $0.23 | $0.191 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.165 | $0.145 | $0.125 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4N26-X009T | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 171799 pcs | Data sheet | 4N25/6/7/8-X |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.36V |
| Vce Saturation (Max) | 500mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 2µs, 2µs | Packaging | Cut Tape (CT) |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Other Names | 4N26-X009TCT | Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 20% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 60mA | Base Part Number | 4N26 |
