Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-25F10

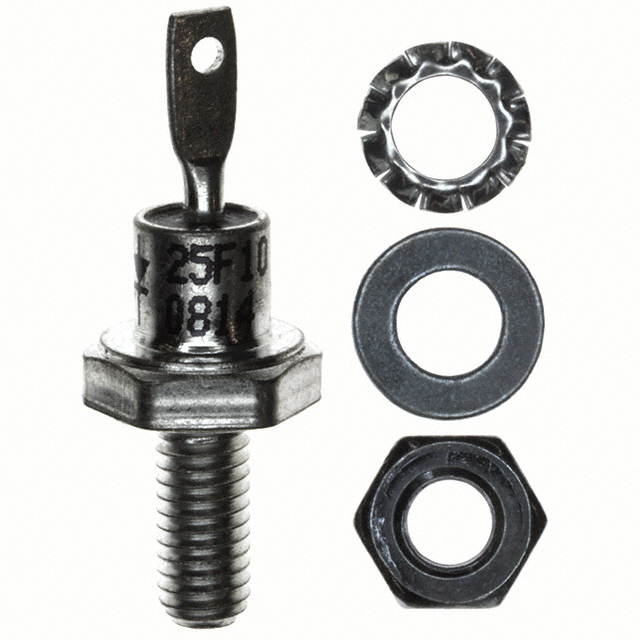

VS-25F10

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-25F10 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-25F10
Manufacturer	Vishay Semiconductor Diodes Division
Description	DIODE GEN PURP 100V 25A DO203AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 30411 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.228

Product parameter
Data sheet

Product parameter

Part Number	VS-25F10	Manufacturer	Vishay Semiconductor Diodes Division
Description	DIODE GEN PURP 100V 25A DO203AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30411 pcs	Data sheet	VS-25F(R) Series
Category	Discrete Semiconductor Products	Voltage - Peak Reverse (Max)	Standard
Voltage - Forward (Vf) (Max) @ If	25A	Voltage - Breakdown	DO-203AA
Series	-	RoHS Status	Bulk
Reverse Recovery Time (trr)	Standard Recovery >500ns, > 200mA (Io)	Resistance @ If, F	-
Polarization	DO-203AA, DO-4, Stud	Other Names	*25F10 25F10 VS-25F10-ND VS25F10 VS25F10-ND
Mounting Type	Chassis, Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Manufacturer Part Number	VS-25F10
Expanded Description	Diode Standard 100V 25A Chassis, Stud Mount DO-203AA	Diode Configuration	12mA @ 100V
Description	DIODE GEN PURP 100V 25A DO203AA	Current - Reverse Leakage @ Vr	1.3V @ 78A
Current - Average Rectified (Io) (per Diode)	100V	Capacitance @ Vr, F	-65°C ~ 175°C
