Home > Products > Sensors, Transducers > Strain Gauges > MMF017059

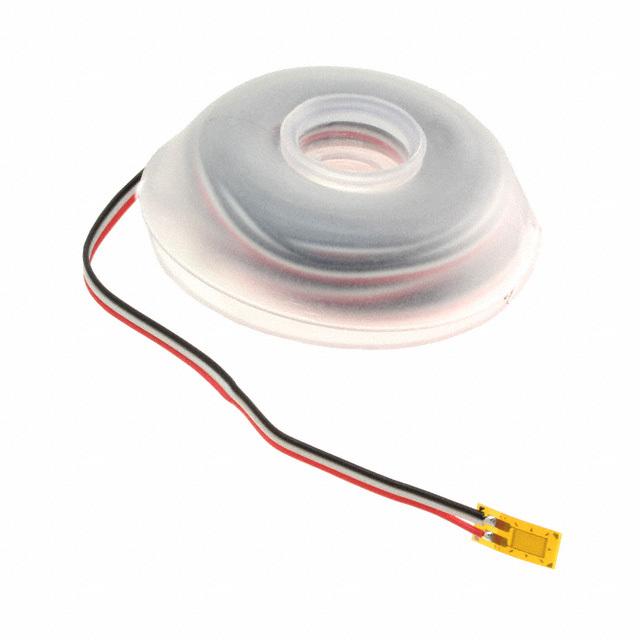

MMF017059

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMF017059 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MMF017059
Manufacturer	Vishay Precision Group
Description	STRAIN GUAGE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 667 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$49.196

Product parameter
Data sheet

Product parameter

Part Number	MMF017059	Manufacturer	Vishay Precision Group
Description	STRAIN GUAGE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	667 pcs	Data sheet	Standard Weldable Patterns Guide
Category	Sensors, Transducers	Width - Overall Pattern	0.120" (3.05mm)
Width - Overall	0.19" (4.8mm)	Width - Active	0.100" (2.54mm)
Strain Range	±5%	Series	CEA
Resistance Tolerance	±0.3%	Resistance	350 Ohms
Pattern Type	Linear	Other Names	CEA-06-125UN-350/P2 CEA-06-125UN-350/P2-ND Q7245237 Q7602950 Q8770201
Operating Temperature	-100 ~ 350°F (-75 ~ 175°C)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Length - Overall Pattern	0.275" (6.99mm)
Length - Overall	0.38" (9.7mm)	Length - Active	0.125" (3.18mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Linear Strain Gauge ±5% 0.125" (3.18mm) 0.100" (2.54mm)
