PI5101-01-LGIZ

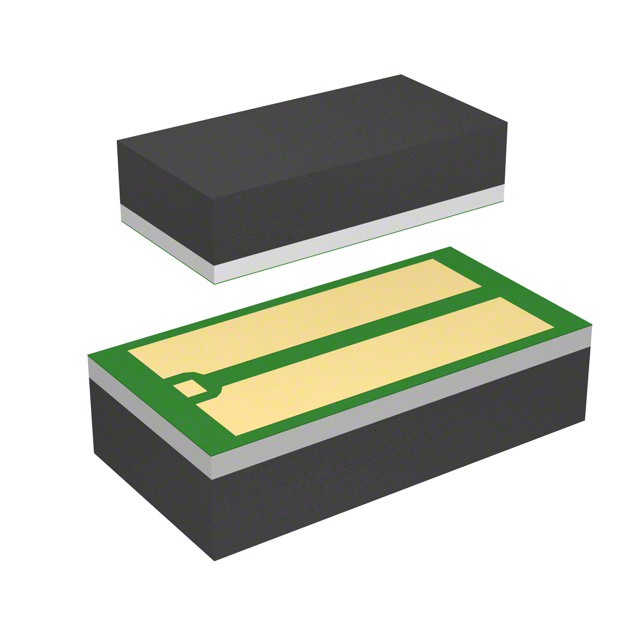

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI5101-01-LGIZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PI5101-01-LGIZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PI5101-01-LGIZ |
|---|---|
| Manufacturer | Vicor |
| Description | MOSFET N-CH 5V 60A 3LGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PI5101-01-LGIZ | Manufacturer | Vicor |
|---|---|---|---|
| Description | MOSFET N-CH 5V 60A 3LGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4767 pcs | Data sheet | PI5101 Series |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 800mV @ 1mA |
| Vgs (Max) | ±5V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 3-LGA (4.1x8) | Series | Picor® µRDS(on)FET® |
| Rds On (Max) @ Id, Vgs | 0.45 mOhm @ 60A, 4.5V | Power Dissipation (Max) | 3.1W (Ta) |
| Packaging | Tube | Package / Case | 3-FLGA |
| Other Names | 1102-1078-5 PI5101-00-LGIZ PI510101LGIZ |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 7600pF @ 5V |
| Gate Charge (Qg) (Max) @ Vgs | 65nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 3.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 5V | Detailed Description | N-Channel 5V 60A (Ta) 3.1W (Ta) Surface Mount 3-LGA (4.1x8) |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
