Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > PI3325-00-EVAL1

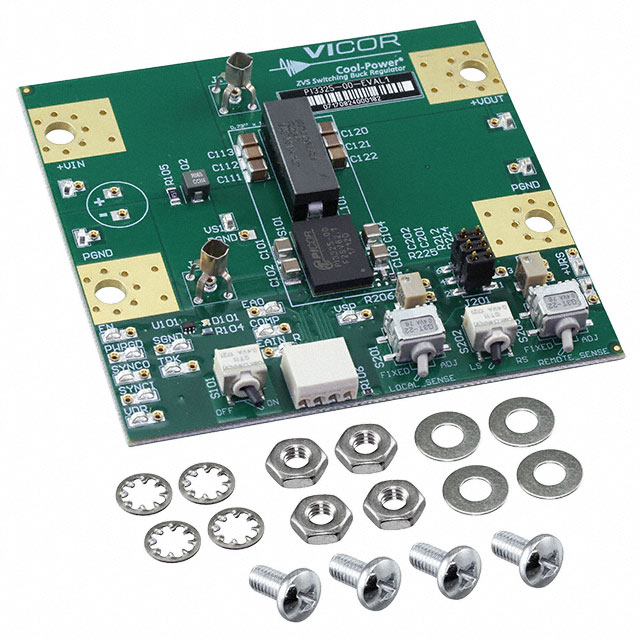

PI3325-00-EVAL1

PI3325-00-EVAL1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3325-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3325-00-EVAL1
Manufacturer	Vicor
Description	EVALUATION BOARD FOR PI3325-00-L
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 458 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$76.005

Product parameter
Data sheet

Product parameter

Part Number	PI3325-00-EVAL1	Manufacturer	Vicor
Description	EVALUATION BOARD FOR PI3325-00-L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	458 pcs	Data sheet	PI33,PI34,PI35xx Series Brief
Category	Development Boards, Kits, Programmers	Voltage - Output	5V
Voltage - Input	8 V ~ 36 V	Utilized IC / Part	PI3325-00
Supplied Contents	Board(s)	Series	Cool-Power® ZVS
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	1102-5747	Manufacturer Standard Lead Time	16 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	PI3325-00 Cool-Power® ZVS DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	20A	Board Type	Fully Populated
