Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > PI3101-00-EVAL1

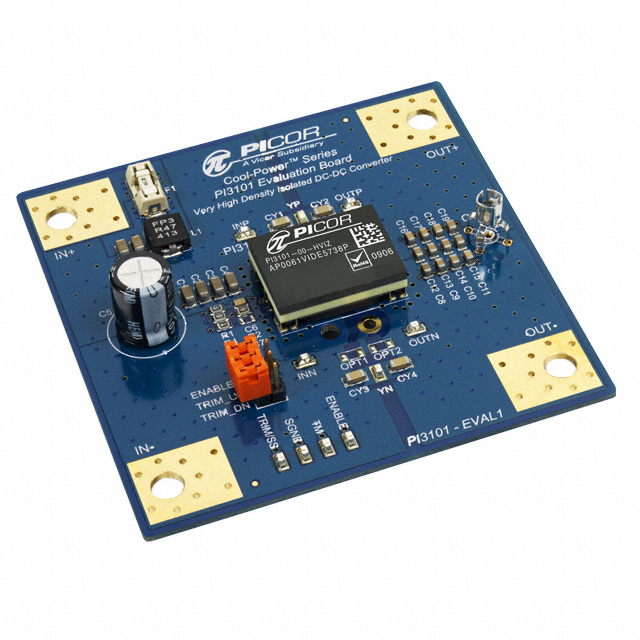

PI3101-00-EVAL1

PI3101-00-EVAL1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3101-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3101-00-EVAL1
Manufacturer	Vicor
Description	EVALUATION BOARD FOR PI3101
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 269 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$143.774

Product parameter
Data sheet

Product parameter

Part Number	PI3101-00-EVAL1	Manufacturer	Vicor
Description	EVALUATION BOARD FOR PI3101	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	269 pcs	Data sheet	PI31xy-xy-EVAL1 User Guide PI31xx-xx-EVAL1 User Guide PI31xx Series Overview
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	36 V ~ 75 V	Utilized IC / Part	PI3101-00
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Power - Output	60W
Outputs and Type	1, Isolated	Other Names	1102-1062 PI3101-EVAL1 PI3101EVAL1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	900kHz	Detailed Description	PI3101-00 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board
Current - Output	18A	Board Type	Fully Populated
