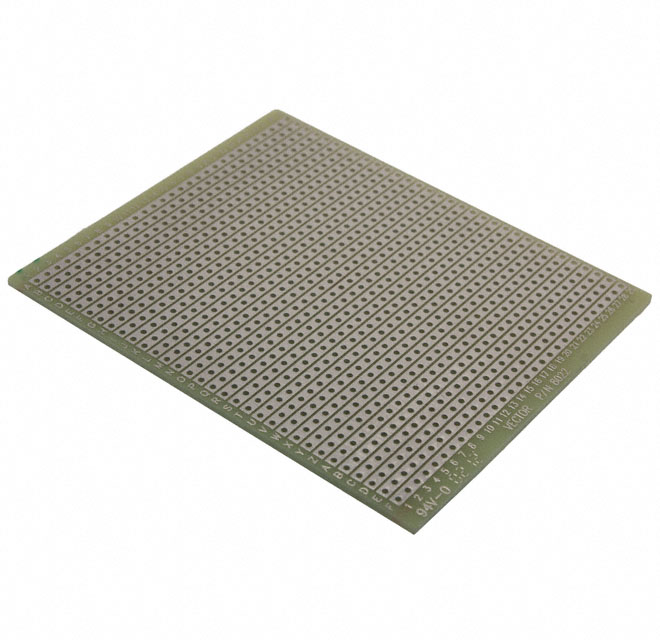

8022
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8022 |
|---|---|
| Manufacturer | Vector Electronics & Technology, Inc. |
| Description | BREADBOARD GENERAL PURPOSE NPTH |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $2.196 | $2.14 | $2.082 | $2.024 | $1.909 | |
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.851 | $1.677 | $1.619 | $1.562 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8022 | Manufacturer | Vector Electronics & Technology, Inc. |
|---|---|---|---|
| Description | BREADBOARD GENERAL PURPOSE NPTH | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 21209 pcs | Data sheet | 8022 Datasheet8022 Layout Drawing |
| Category | Prototyping, Fabrication Products | Size / Dimension | 3.50" L x 3.00" W (88.9mm x 76.2mm) |
| Series | Vectorbord® Circbord™ | Proto Board Type | Breadboard, General Purpose |
| Plating | Non-Plated Through Hole (NPTH) | Pitch | 0.100" (2.54mm) |
| Other Names | V2018 | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Hole Diameter | 0.042" (1.07mm) |
| Edge Contacts | - | Detailed Description | Breadboard, General Purpose Non-Plated Through Hole (NPTH) Common Bus 0.100" (2.54mm) |
| Circuit Pattern | Common Bus | Board Thickness | 0.062" (1.57mm) 1/16" |
