8015-1

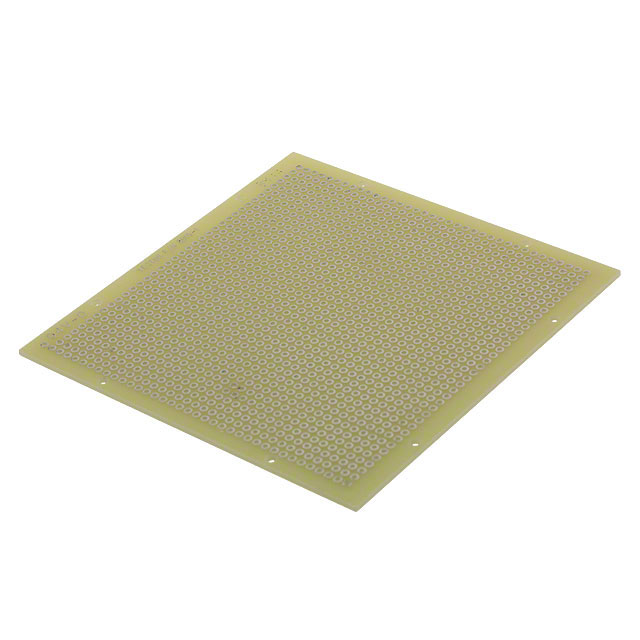

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8015-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8015-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8015-1 |
|---|---|
| Manufacturer | Vector Electronics & Technology, Inc. |
| Description | BREADBOARD GENERAL PURPOSE NPTH |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $2.765 | $2.691 | $2.618 | $2.546 | $2.40 | |
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.327 | $2.109 | $2.037 | $1.964 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8015-1 | Manufacturer | Vector Electronics & Technology, Inc. |
|---|---|---|---|
| Description | BREADBOARD GENERAL PURPOSE NPTH | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 17949 pcs | Data sheet | 8015-1 Datasheet8015-1 Layout Drawing |
| Category | Prototyping, Fabrication Products | Size / Dimension | 4.00" L x 4.00" W (101.6mm x 101.6mm) |
| Series | Vectorbord® Circbord™ | Proto Board Type | Breadboard, General Purpose |
| Plating | Non-Plated Through Hole (NPTH) | Pitch | 0.100" (2.54mm) |
| Other Names | 80151 V2010 |
Moisture Sensitivity Level (MSL) | Not Applicable |
| Material | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Hole Diameter | 0.042" (1.07mm) |
| Edge Contacts | - | Detailed Description | Breadboard, General Purpose Non-Plated Through Hole (NPTH) Pad Per Hole (Round) 0.100" (2.54mm) |
| Circuit Pattern | Pad Per Hole (Round) | Board Thickness | 0.062" (1.57mm) 1/16" |
