8004

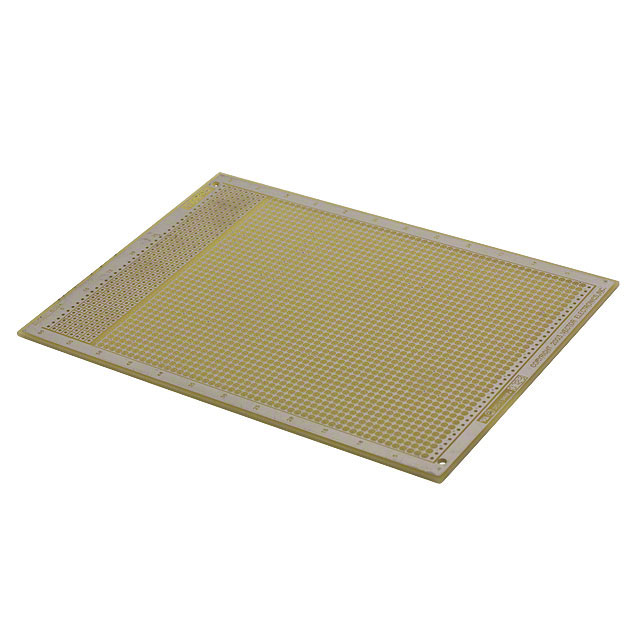

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8004 |
|---|---|
| Manufacturer | Vector Electronics & Technology, Inc. |
| Description | BREADBOARD GENERAL PURPOSE NPTH |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $9.653 | $9.386 | $8.85 | $8.582 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $8.045 | $7.777 | $7.241 | $6.973 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8004 | Manufacturer | Vector Electronics & Technology, Inc. |
|---|---|---|---|
| Description | BREADBOARD GENERAL PURPOSE NPTH | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 5273 pcs | Data sheet | 8004 Layout Drawing8004 Datasheet |
| Category | Prototyping, Fabrication Products | Size / Dimension | 6.50" L x 4.50" W (165.1mm x 114.3mm) |
| Series | Vectorbord® Circbord™ | Proto Board Type | Breadboard, General Purpose |
| Plating | Non-Plated Through Hole (NPTH) | Pitch | 0.100" (2.54mm) |
| Other Names | V1047 | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Hole Diameter | 0.042" (1.07mm) |
| Edge Contacts | - | Detailed Description | Breadboard, General Purpose Non-Plated Through Hole (NPTH) Pad Per Hole (Square), Ground Plane 0.100" (2.54mm) |
| Circuit Pattern | Pad Per Hole (Square), Ground Plane | Board Thickness | 0.062" (1.57mm) 1/16" |
