3682

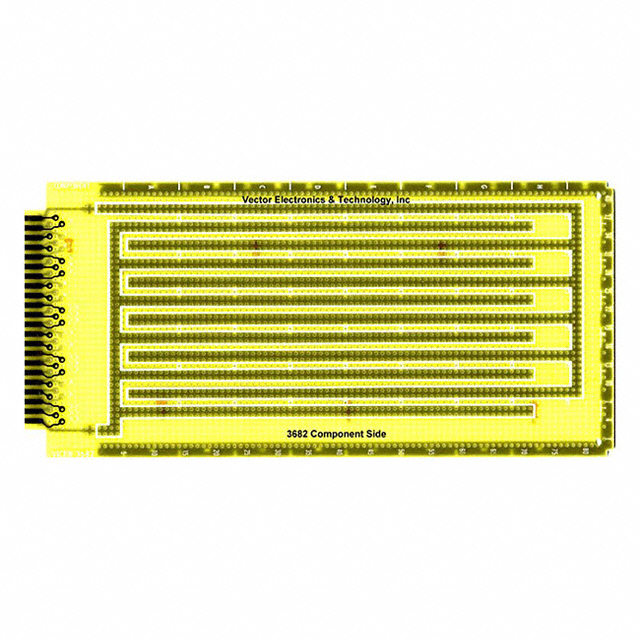

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3682 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3682 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3682 |
|---|---|
| Manufacturer | Vector Electronics & Technology, Inc. |
| Description | PLUGBOARD CARD EDGE PTH |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $11.817 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3682 | Manufacturer | Vector Electronics & Technology, Inc. |
|---|---|---|---|
| Description | PLUGBOARD CARD EDGE PTH | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 2553 pcs | Data sheet | Vectorbord 44 Contacts3682 Layout Drawing |
| Category | Prototyping, Fabrication Products | Size / Dimension | 6.50" L x 4.50" W (165.1mm x 114.3mm) |
| Series | Vectorbord® Plugbord™ | Proto Board Type | Plugboard, Card Edge |
| Plating | Plated Through Hole (PTH) | Pitch | 0.100" (2.54mm) |
| Other Names | V1022 | Material | - |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Hole Diameter | 0.042" (1.07mm) | Edge Contacts | 44 @ 0.156" (3.96mm) |
| Detailed Description | Plugboard, Card Edge Plated Through Hole (PTH) Common Bus 0.100" (2.54mm) | Circuit Pattern | Common Bus |
| Board Thickness | 0.062" (1.57mm) 1/16" |
