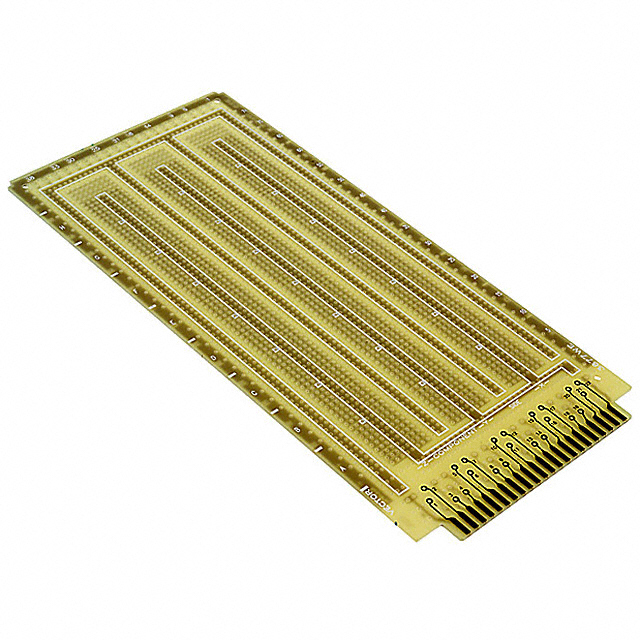

3677
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3677 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3677 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3677 |
|---|---|
| Manufacturer | Vector Electronics & Technology, Inc. |
| Description | PLUGBOARD CARD EDGE NPTH |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $11.894 | $11.564 | $10.903 | $10.573 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.912 | $9.582 | $8.921 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3677 | Manufacturer | Vector Electronics & Technology, Inc. |
|---|---|---|---|
| Description | PLUGBOARD CARD EDGE NPTH | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 4345 pcs | Data sheet | 3677 Layout DrawingVectorbord 44 Contacts |
| Category | Prototyping, Fabrication Products | Size / Dimension | 9.60" L x 4.50" W (243.8mm x 114.3mm) |
| Series | Vectorbord® Plugbord™ | Proto Board Type | Plugboard, Card Edge |
| Plating | Non-Plated Through Hole (NPTH) | Pitch | 0.100" (2.54mm) |
| Other Names | V1019 | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Hole Diameter | 0.042" (1.07mm) |
| Edge Contacts | 44 @ 0.156" (3.96mm) | Detailed Description | Plugboard, Card Edge Non-Plated Through Hole (NPTH) 3 Hole Pad (Single Side) 0.100" (2.54mm) |
| Circuit Pattern | 3 Hole Pad (Single Side) | Board Thickness | 0.062" (1.57mm) 1/16" |
