CMDA1DR7A1Z

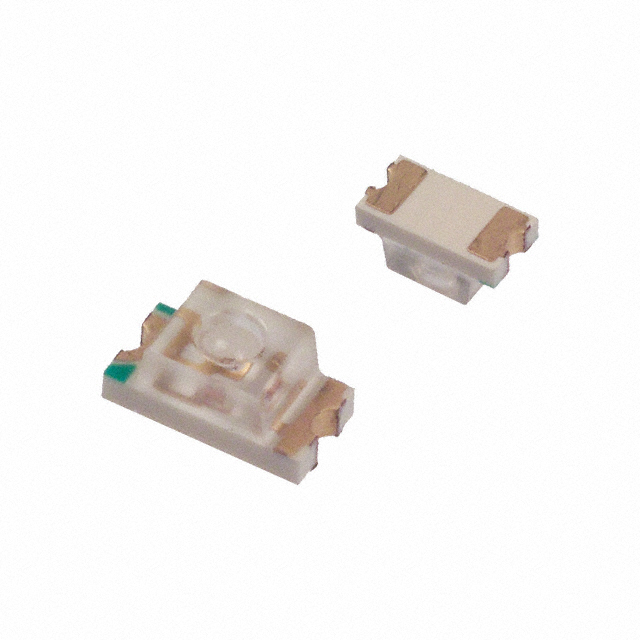

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMDA1DR7A1Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMDA1DR7A1Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMDA1DR7A1Z |
|---|---|
| Manufacturer | VCC (Visual Communications Company) |
| Description | LED RED CLEAR 1206 SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMDA1DR7A1Z | Manufacturer | VCC (Visual Communications Company) |
|---|---|---|---|
| Description | LED RED CLEAR 1206 SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5015 pcs | Data sheet | CMDA1 Drawing, 1206 PkgCMDA1xx7A1Z Drawing |
| Category | Optoelectronics | Wavelength - Peak | 660nm |
| Wavelength - Dominant | 647nm | Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 70° | Supplier Device Package | 1206 |
| Size / Dimension | 3.00mm L x 1.50mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1206 (3016 Metric) |
| Other Names | L71501TR | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Millicandela Rating | 33.6mcd |
| Lens Transparency | Clear | Lens Style/Size | Rectangle with Flat Top, 1.80mm x 1.50mm |
| Lens Color | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 1.75mm | Features | - |
| Detailed Description | Red 647nm LED Indication - Discrete 1.7V 1206 (3016 Metric) | Current - Test | 20mA |
| Configuration | Standard | Color | Red |
