Home > Products > Power Supplies - External/Internal (Off-Board) > AC DC Desktop, Wall Adapters > WSU135-1770-13

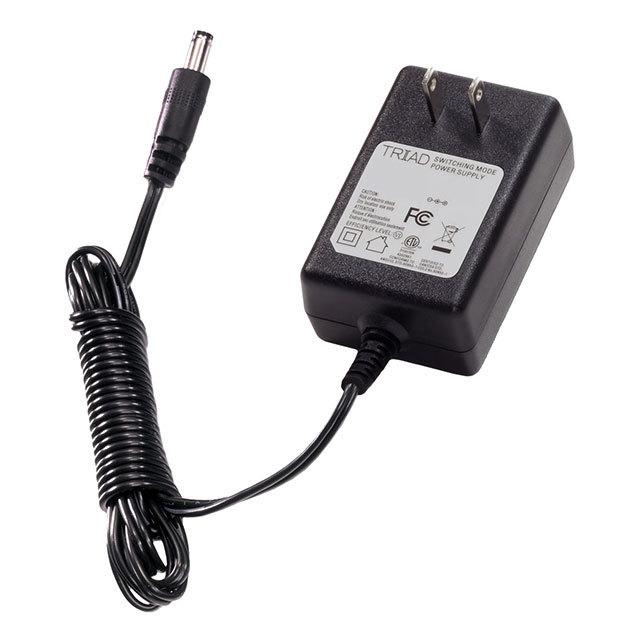

WSU135-1770-13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WSU135-1770-13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	WSU135-1770-13
Manufacturer	Triad Magnetics
Description	100-240V WALL PLUG-IN PWR SUPPLY
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7714 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs
	$5.628	$5.478	$5.173	$4.869
	$4.565	$4.261	$4.108	$4.048

Product parameter
Data sheet

Product parameter

Part Number	WSU135-1770-13	Manufacturer	Triad Magnetics
Description	100-240V WALL PLUG-IN PWR SUPPLY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7714 pcs	Data sheet	WSU135-1770-13 Datasheet
Category	Power Supplies - External/Internal (Off-Board)	Weight	-
Voltage - Output	13.5V	Voltage - Input	90 ~ 264 VAC
Size / Dimension	3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)	Series	WSU
Region Utilized	North America	Power (Watts)	24W
Polarization	Positive Center	Output Connector	Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Other Names	237-2235	Operating Temperature	0°C ~ 40°C
No Load Power Consumption	100mW (Max)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Fixed Blade	Input Connector	NEMA 1-15P
Form	Wall Mount	Efficiency	Level VI
Detailed Description	13.5V 24W AC/DC External Wall Mount Adapter Fixed Blade Input	Current - Output (Max)	1.77A
Cord Length	60" (1.52m)	Approvals	cETLus
Applications	ITE (Commercial)
