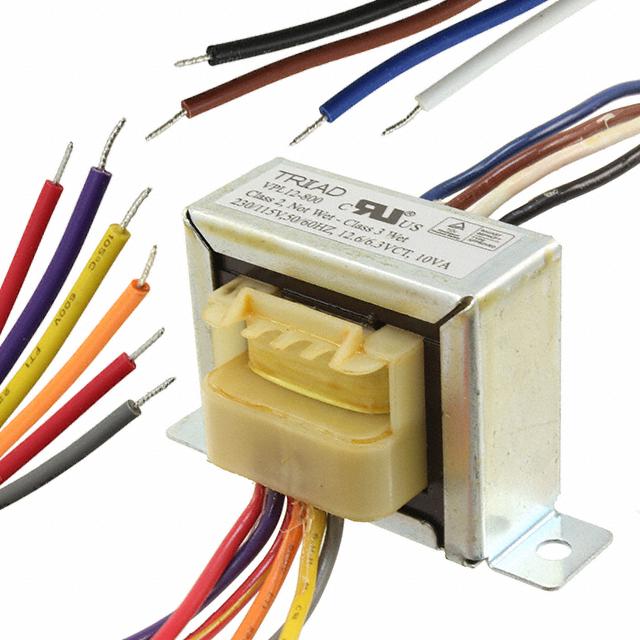

VPL12-800
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPL12-800 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VPL12-800 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VPL12-800 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR PWR 12.6V 0.79A CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.531 | $3.347 | $3.09 | $2.987 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.904 | $2.863 | $2.832 | $2.781 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VPL12-800 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | XFRMR PWR 12.6V 0.79A CHASSIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13979 pcs | Data sheet | VPL12-800 Datasheet |
| Category | Transformers | Weight | 0.7 lb (317.51g) |
| Voltage - Secondary (Full Load) | 12.6V | Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 3500Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 36.52mm L x 71.44mm W |
| Series | Chassis Mount: World Series™ | Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual | Power - Max | 10.0 VA |
| Other Names | 237-1636 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 44.45mm |
| Current - Output (Max) | 790mA | Center Tap | No |
